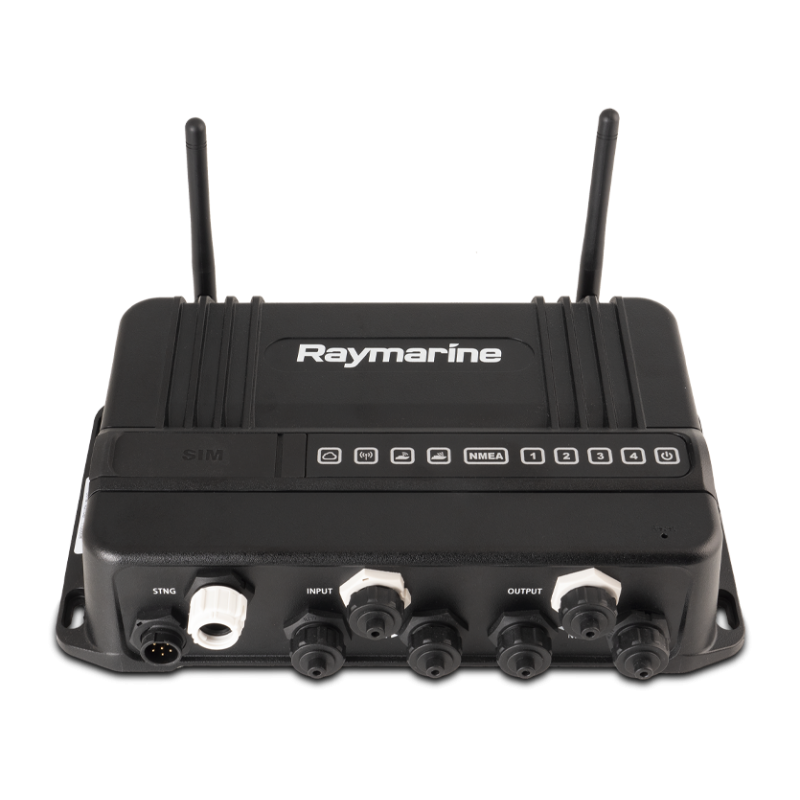

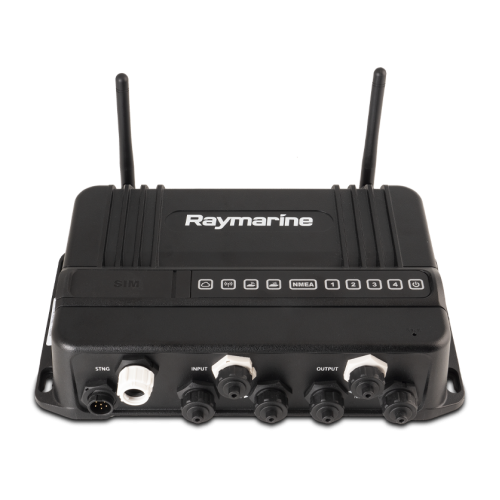

Raymarine Yachtsense Link Marine Cloud Router - E70640
Raymarine Yachtsense Link Marine Cloud Router - E70640
MARINE MOBILE ROUTER
YachtSense Link is a multi-purpose marine 4G mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected.
Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.
REMOTE MONITORING
GeoFence provides alerts and notifications if your vessel moves in or outside a safety zone.
Low power consumption mode supports GeoFence remote monitoring (subscription required)
x4 input and output low voltage digital switching channels
Easy DIY setup using a web browser or Axiom display
ALWAYS CONNECTED
Connect Raymarine equipment, tablets, smart TVs, and other wireless devices to a unified onboard network
Mobile broadband connection to 4G (LTE) networks (SIM card and data plan required)
Supports dual SIM cards for seamless connectivity to international mobile networks
Integrated GPS with a range extending 4 in 1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi)
STAY INFORMED
Connect and view real time instrument and navigation data on board or remotely
x4 Raynet Ethernet ports for connecting Raymarine devices
SeaTalkNG/NMEA2000 port
Rugged IPX6 enclosure is shock and vibration resistant
Pack Includes
1 - YachtSense Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted)
2 - 4 x mounting fixings (PA 4 x 25 mm self tapping screws)
3 - Documentation
4 - 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket
5 - 2 x Dipole antenna (BOAT Wi-Fi)
6 - RayNet to RJ45 cable 1 m (3.3 ft)
7 - SeaTalkng spur cable 1 m (3.3 ft)
8 - Power cable with 8 A fitted fuse 1.5 m (4.9 ft)
9 - Input cable (5-wire) 0.5 m (1.64 ft)
10 - Output cable (8-wire) 0.5 m (1.64 ft)
