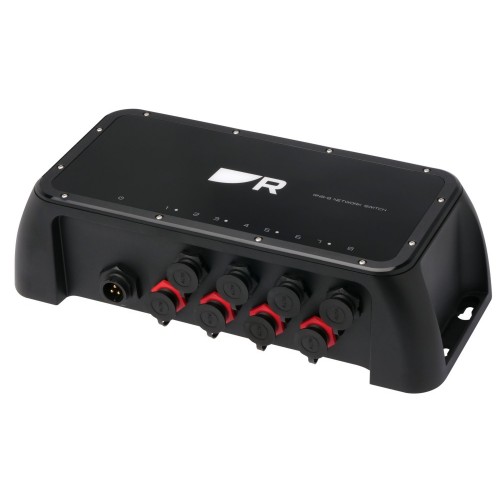

Raymarine RNS-8 RayNet Gigabit Network 8 Way Switch - A80732

Click Image for Gallery

Raymarine RNS-8 RayNet Gigabit Network 8 Way Switch - A80732

8 PORT RAYNET NETWORK SWITCH

The RNS-8 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling.

Use the RNS-8 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras.

The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router.

Two RNS-8 switches can be daisy-chained together for larger systems. The RNS-8 is simple to install and requires no complicated setup.

Network connection ports

4 x RayNet connection ports (10/100/1000 Mbits/s)
4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port.

• Rugged IPX6 and IPX7 construction

• Reliable, waterproof RayNet connector Ethernet cable ports

• Designed for simple bulkhead mounting

• LED power and network port status indicators

• Unmanaged- simply plug and play with Raymarine devices.

• No complicated setup or configuration

POWER

Nominal supply voltage - 12 V or 24 V dc

Operating voltage range - 9 V to 31.2 V dc

PoE operating voltage range - 10.8 V to 31.2 V dc

Power consumption

160 W (Maximum) @ 12 V dc

150 W (Maximum) @ 24 V dc

Current

13.3 A (Maximum) @ 12 V dc

6.25 A (Maximum) @ 24 V dc

Inline fuse rating

15 A @ 12 V dc

8 A @ 24 V dc

Thermal breaker rating

20 A @ 12 V dc

10 A @ 24 V dc

Network connection ports

4 x RayNet connection ports (10/100/1000 Mbits/s)

4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port.

IEEE Standard

Conforms to IEEE 802.3at

PHYSICAL

Length - 287.63 mm (11.32 in)

Height - 125.5 mm (4.94 in)

Depth - 78 mm (3.07 in)

Port separation distance - 17.38 mm (0.68 in)

Weight - 960.5 g (2.12 lbs)
