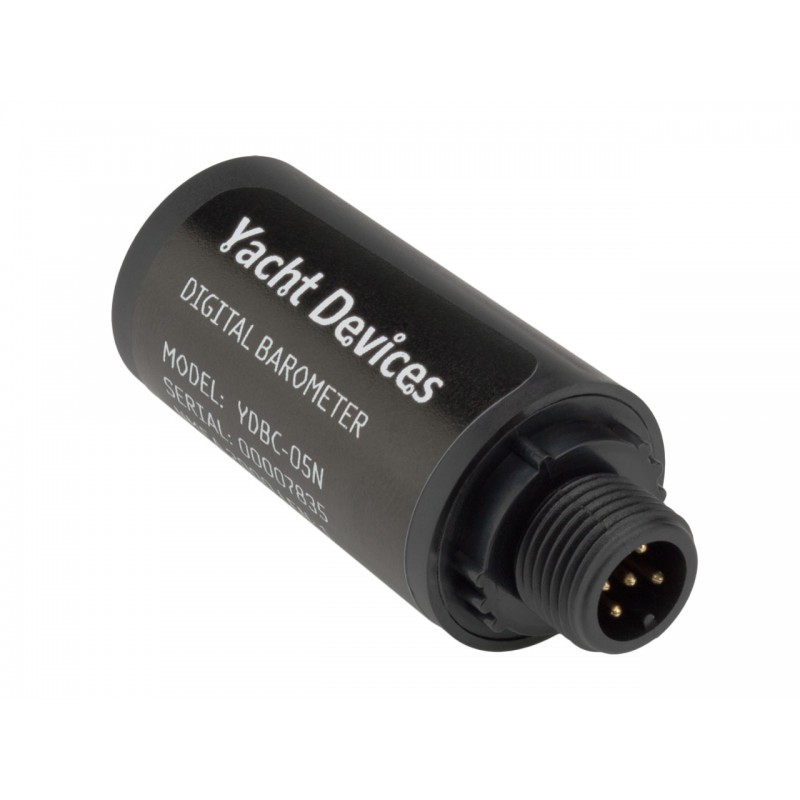

Yacht Devices Digital Barometer for NMEA2000 - YDBC-05N

Yacht Devices Digital Barometer for NMEA2000 - YDBC-05N

Yacht Devices Digital Barometer for NMEA2000 - YDBC-05N

The above image is an example of how the data can be displays on an MFD. In this case a B&G Vulcan.

Device is plug and play, works right our of the box and does not require any settings. Calibration of the Barometer has been performed by the manufacturer. Therefore, you can set an offset from -10.0 to +10.0 hPa for the sensor readings to align with readings from other ship equipment. Programming of the NMEA 2000 device instance, system instance, data instance, description strings is also supported.

The Barometer can be configured by user to turn on or off specified channels of digital switching equipment. The conditions can be either the actual atmospheric pressure or the difference between actual pressure and the pressure 30 minutes or 1 hour ago. This allows a warning to be set concerning the rise or fall of pressure and upcoming weather changes (see Section VIII of the Manual for details).

The measurements of the last 48 hours are stored in the Device's RAM and can be retrieved by compatible software or hardware to provide the user with historical data.

Support of the Barometer in our other products:

  • Web Gauges of NMEA 2000 Wi-Fi Gateway, NMEA 0183 Wi-Fi Gateway and NMEA 0183 Wi-Fi Router can display atmospheric pressure graph or data bar;
  • the Barometer can automatically manage loads connected to the Circuit Control YDCC-04;
  • the NMEA 0183 Gateway and NMEA 2000 USB Gateway convert atmospheric pressure to NMEA 0183 MDA sentence and vice versa;
  • the PC software of Voyage Recorder use atmospheric pressure in spreadsheets, GPX tracks and log books;
  • the Text Display shows atmospheric pressure along with humidity and other environmental data;
  • the CAN Log Viewer can update Device's firmware, configure it, and display measured data.

Write a review

Please login or register to review
  • Brand: Yacht Devices
  • Product Code: Yacht Devices Digital Barometer for NMEA2000 - YDBC-05N
  • Availability: In Stock
  • RRP Inc VAT: £94.96

  • Our Price: £89.00
  • Ex VAT: £74.17
