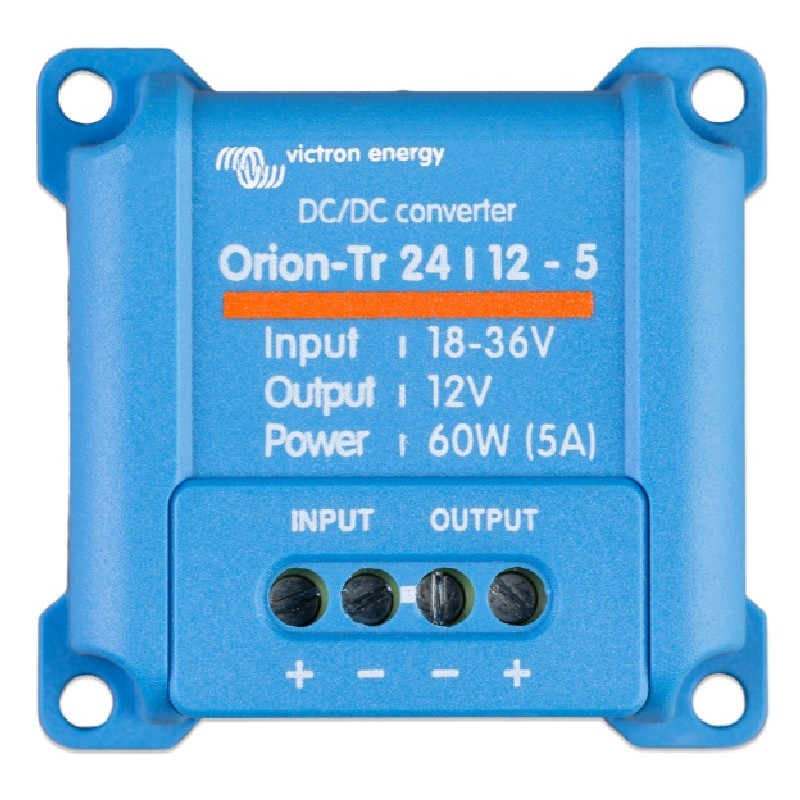

Victron Orion-Tr DC/DC Converter - Non Isolated - 24/12-5 (60w) - ORI241205200
Click Image for Gallery
Victron Orion-Tr DC/DC Converter - Non Isolated - 24/12-5 (60w) - ORI241205200
High efficiency
- Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
- When installed with the screw terminals oriented downwards.
Screw terminals
- No special tools needed for installation.
Features
- Input voltage range: 18-35 V
- Output voltage: 12.7 V
- Efficiency: 95%
- Continuous output current: 5 A
- Max. Output current: 7A
- Off load current: < 20mA
- Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C
- DC connection: Screw terminals
- Weight kg: 0,09
- Dimensions h x w x d in mm: 53 x 51 x 27
