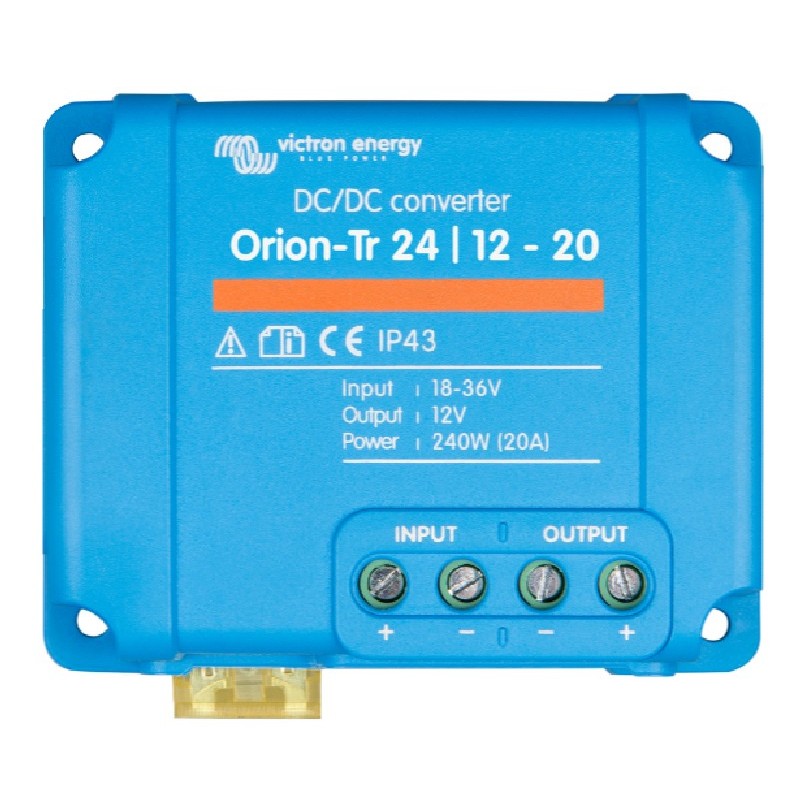

Victron Orion-Tr DC/DC Converter - Non Isolated - 24/12-20 (240w) - ORI241220200
Click Image for Gallery
Victron Orion-Tr DC/DC Converter - Non Isolated - 24/12-20 (240w) - ORI241220200
High efficiency
- Using synchronous rectification, full load efficiency exceeds 95%.
IP43 protection
- When installed with the screw terminals oriented downwards.
Screw terminals
- No special tools needed for installation.
Features
- Input voltage range: 18-35 V
- Output voltage: 12.5 V
- Efficiency: 97%
- Continuous output current: 20 A
- Max. Output current: 25A
- Off load current: < 35mA
- Operating temperature range (derate 3% per °C above 40°C): -20 to +55°C
- DC connection: Screw terminals
- Weight kg: 0.25
- Dimensions h x w x d in mm: 73 x 94 x 45
