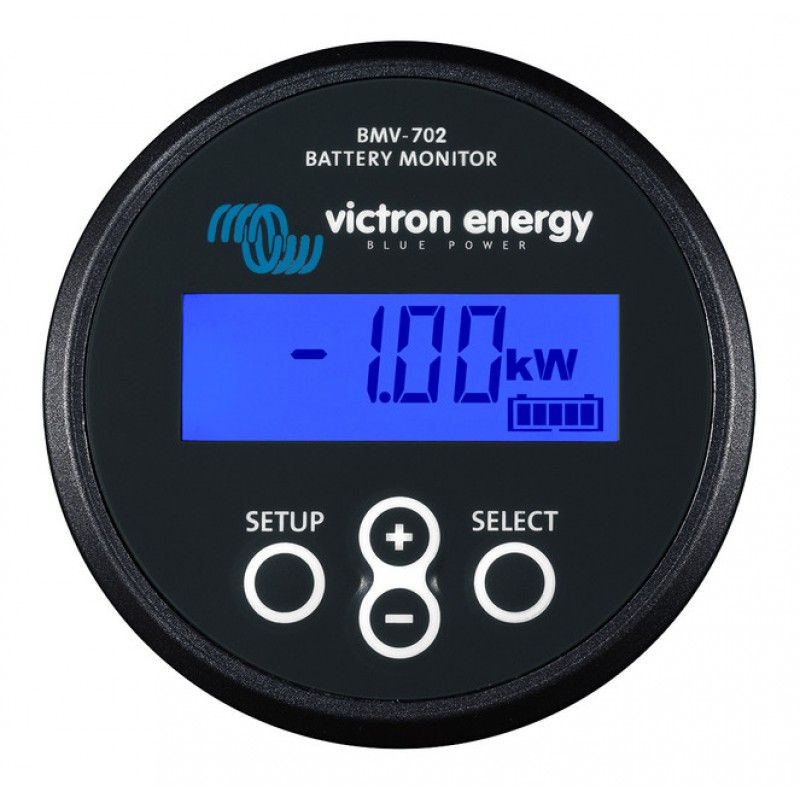

Victron Energy BMV-702 9-90VDC Precision Battery Monitor - Black - BAM010702200

Victron Energy BMV-702 9-90VDC Precision Battery Monitor - Black - BAM010702200

Victron Energy BMV-702 9-90VDC Precision Battery Monitor - Black - BAM010702200



BMV-700 series

The BMV-700 is our newest high precision battery monitor. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere-hours consumed are calculated by integrating the current flowing in or out of the battery.

Battery ‘fuel gauge’, time-to-go indicator, and much more

The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account. Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.

The BMV-702 features an additional input which can be programmed to measure the voltage (of a second battery), temperature or midpoint voltage (see below).

Easy to install

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.

Also included are a separate front bezel for a square or round display appearance; a securing ring for the rear mounting and screws for the front mounting.

Easy to program

A quick install menu and a detailed setup menu with scrolling texts assists the user when going through the various settings. Please consult the manual for details.

New: midpoint voltage monitoring (BMV-702 only)

This feature which is often used in industry to monitor large and expensive battery banks, is now for the first time made available at a low cost, to monitor any battery bank.

A battery bank consists of a string of series connected cells. The midpoint voltage is the voltage halfway along the string. Ideally, the midpoint voltage would be exactly half of the total voltage. In practice, however, deviations will be seen, dependent on many factors such as a different state of charge for new batteries or cells, different temperatures, internal leakage currents, capacities and much more.

Large or increasing deviation of the midpoint voltage, points to improper battery care or a failed battery or cell. Corrective action following a midpoint voltage alarm can prevent severe damage to an expensive battery. Please consult the BMV manual for more information.

Standard features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Time to go at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed.
  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10.000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 9,5 – 95 V
  • High current measurement resolution: 10 mA (0,01A)
  • Low current consumption: 2,9 Ah per month (4 mA) @12V and 2,2 Ah per month (3mA) @ 24V


BMV-702 additional features

Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings.

BMV 700HS: 60 to 385VDC voltage range

No prescaler needed. Note: suitable for systems with grounded minus only (battery monitor is not isolated from shunt).

BMV 702 Battery Monitor Specifications



  • Supply voltage range : 6,5 - 95 VDC
  • Current draw, back light off : < 4 mA
  • Input voltage range, auxiliary battery : 6,5 - 95 VDC
  • Battery capacity : 20 - 9999 Ah
  • Operating temperature range : -20 +50°C (0 - 120°F)
  • Measures voltage of second battery, or temperature, or midpoint
  • Temperature measurement range : -20 to +50°C
  • VE.Direct communication port
  • Relay : 60V/1A normally open (function can be inverted)



RESOLUTION & ACCURACY (with a 500 A shunt)



  • Current ± 0,01 A
  • Voltage ± 0,01 V
  • Amp hours ± 0,1 Ah
  • State of charge (0 – 100 %) ± 0,1 %
  • Time to go ± 1 min
  • Temperature (0 - 50°C or 30 - 120°F) : ± 1 °C/°F
  • Accuracy of current measurement ± 0,4 %
  • Accuracy of voltage measurement ± 0,3 %



DIMENSIONS & INSTALLATION



  • Flush mount - Front 63 mm diameter x bezel 69 x 69 mm
  • Body: diameter 52mm x depth 31mm
  • Included Accessories : 500 A / 50 mV Shunt, 10 meter 6 core UTP cable with RJ12 connectors, and cable with fuse for ‘+’ connection



STANDARDS



  • Safety EN 60335-
  • Emission / Immunity EN 55014-1 / EN 55014-2
  • Automotive ECE R10-4 / EN 50498



Features

  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Time to go at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed.
  • 500 Amp quick connect shunt and connection kit - Shunt selection capability up to 10.000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 9,5 – 95 V
  • High current measurement resolution: 10 mA (0,01A)
  • Low current consumption: 2,9 Ah per month (4 mA) @12V and 2,2 Ah per month (3mA) @ 24V
