Veratron Linkup J1939 NMEA2000 Gateway
Click Image for Gallery
Veratron Linkup J1939 NMEA2000 Gateway

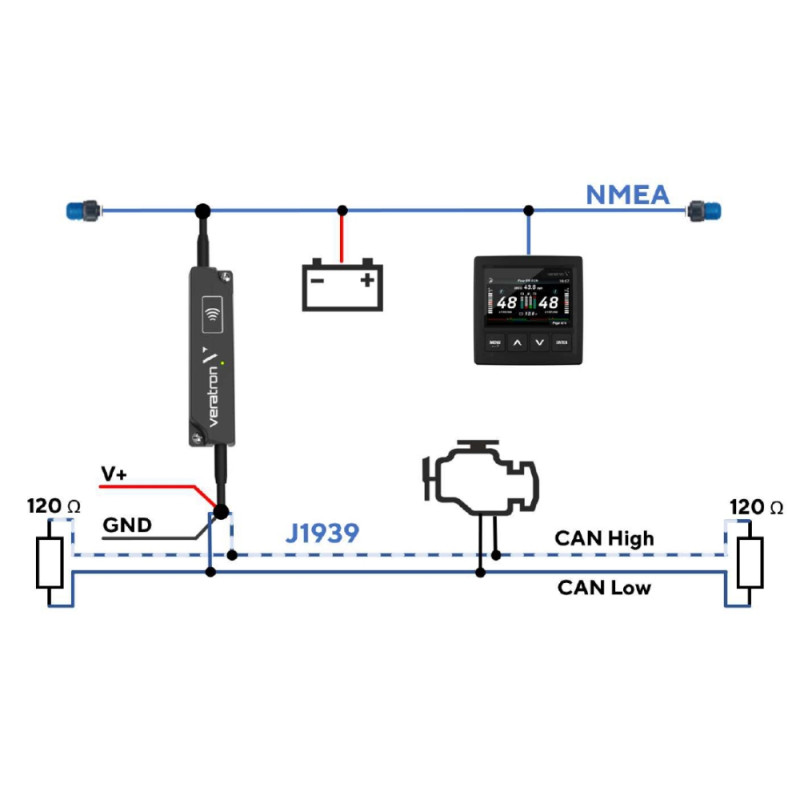

The LinkUp J1939 Gateway provides an easy method to convert engine or vessel information to NMEA 2000. Easily installed, the LinkUp gateway replaces the original wiring by a single NMEA2000 drop cable.
The data is then available for being displayed on any NMEA 2000 display device.

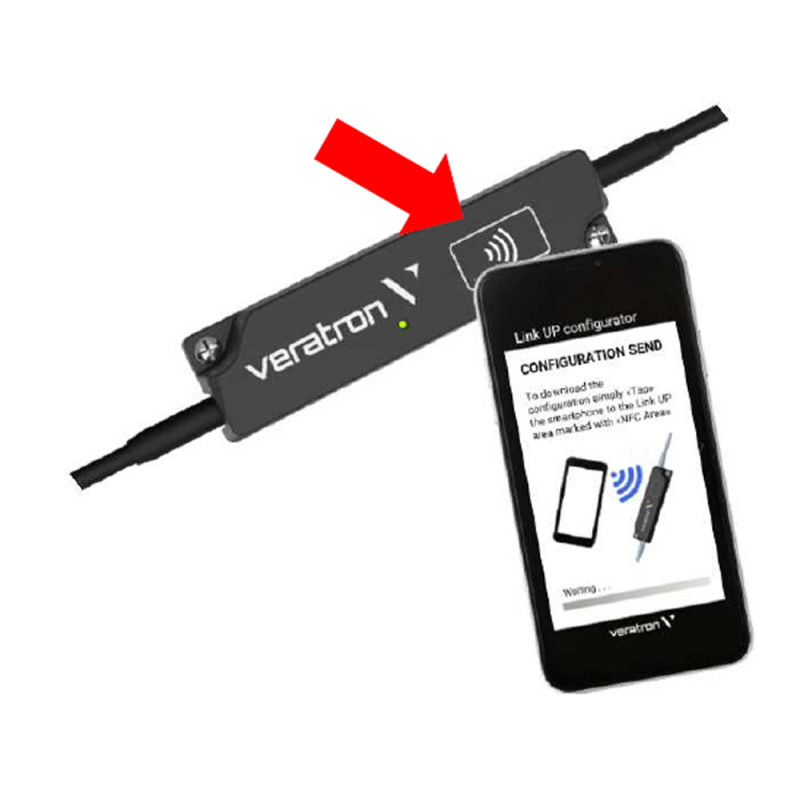

Configuring LinkUp gateways is simple using a mobile device and the companion LinkUp Configurator App for Android or iOS.
Function: Rudder, Battery, Clock, Engine revolution, Exhaust gas temperature, Speed, Trim, Fuel level, Oil temperature, Coolant temperature, Air pressure, Engine hours, Boost pressure, Transmission oil pressure, Engine oil pressure
Nominal Voltage: 12V
IP Class: IP X9/K
Connectivity: NMEA 2000, SAE J1939
Inputs: SAE J1939
Output: NMEA 2000
Current consumption: ≤ 100 mA
Nominal voltage: 12 V (from NMEA 2000® network)
Protection class: IP X9/K
Dimensions: 125 mm x 32 mm (+cables)
Cable length: 2x 25cm
Connector: Deutsch DT04-6P (Male)
Wireless interface: AirWave Ready
Operating temperature: -30°C to 80°C
