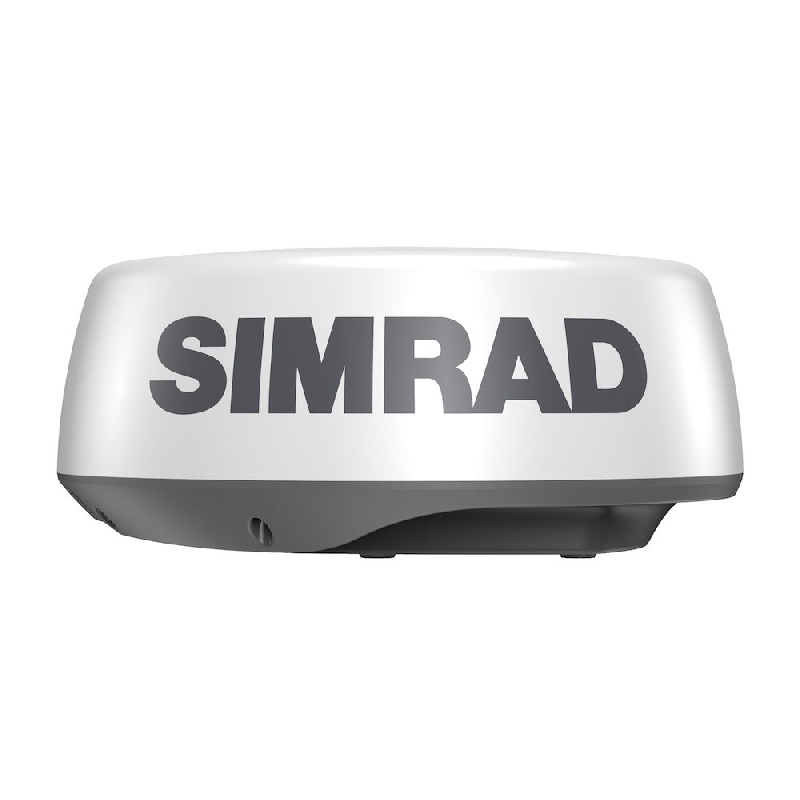

Simrad HALO20 Radar - 000-14537-001

Simrad HALO20 Radar - 000-14537-001

Simrad HALO20 Radar - 000-14537-001



HALO20 radar is a cost-effective solution for boat user to increase situational awareness and collision avoidance, detecting collision hazards and other targets nearby and up to 24 nautical miles away.

With its small footprint and low profile, HALO20 is the perfect radar solution for more budget-conscious buyers with smaller sport fishing vessels and day boats.

Replaces the BR24 3G Radomes which are now discontinued.

Unrivalled Short-to-Mid-Range Performance

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready When You Are

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you need it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

Harbour, Offshore, Weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features

  • 10W Pulse Compression
  • 24 nm range from a compact 20-inch dome
  • Unrivalled short range
  • Radiation safe
  • Easy operation with harbour, offshore and weather mode
  • MARPA target tracking InstantOn™
  • Low Power Consumption
  • Guard Zones

COMPATIBLE WITH THE FOLLOWING SIMRAD DISPLAYS

GO9 and GO12XSE

GO7 XSR

NSS Evo2

NSS Evo3

NSO Evo2

NSO Evo3

R2009

R3016

Approvals
Compliance FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Electrical
Power Consumption, max. 20W
Power Consumption, typical 18W
Recommended Fuse Rating 5A
Supply Voltage 10.5 - 31.2 VDC (12/24V systems)
Humidity 95% RH at 35°C (95°F)
Environment
Operating Temperature Range -25° to + 55°C (-13° to +130°F)
Waterproof rating IPX6
MFD
Dimensions (Diameter x H) 510mm (20")
Physical
Dimensions (W x H x D) 510mm dia x 223 mm H. (20" dia x 8.8" H)
Weight 5.9 kg (13 lbs) without cable
Radar
Beam width 4.9° H x 25° V
Max Range, scale 24 NM
Max Operating Wind Speed 100 knots (51 m/s)
Min Range, scale 50 m / 200 ft / 50 yd
Radar Modes Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion
Radar Technology Pulse Compression
Rotation speed 24 RPM
Other
Warranty Period 2 Years
Interface Simrad MFD

1 x HALO20 Radome

1 x Radome Cable, 10M - 000-14548-001

1 x Radome Cable to 5-pin Network Adaptor Cable, 1.5mtr - 000-14552-001


Write a review

Please login or register to review
  • Brand: Simrad
  • Product Code: Simrad HALO20 Radar - 000-14537-001
  • Availability: In Stock
  • RRP Inc VAT: £2,204.98


  • Our Price: £1,808.00
  • Ex VAT: £1,506.67
