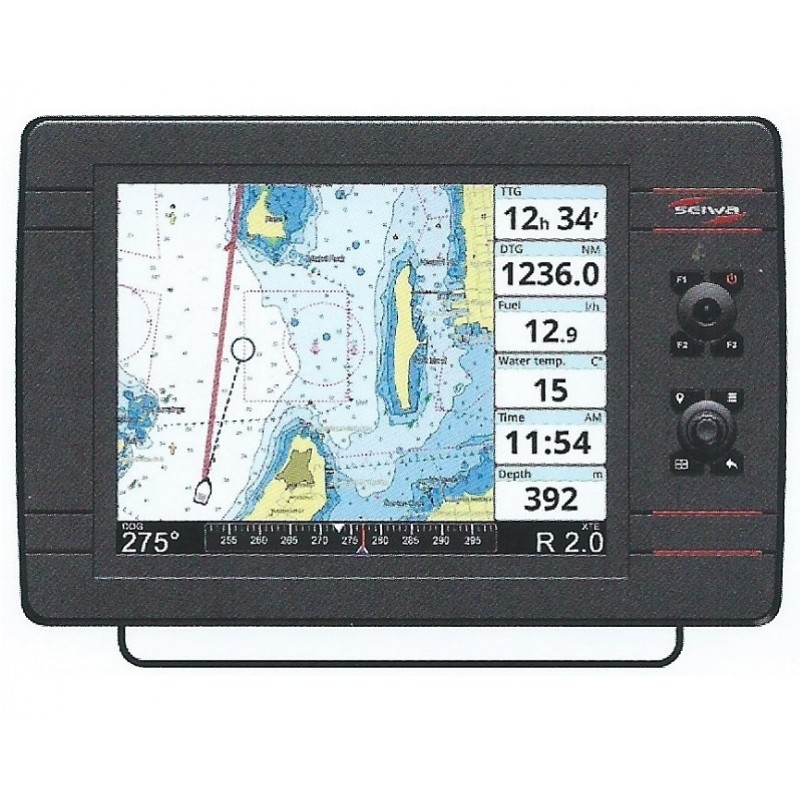

Seiwa SWx 1200w 12" Chartplotter - P3MN100WSE

Seiwa SWx 1200w 12" Chartplotter  - P3MN100WSE

Seiwa SWx 1200w 12" Chartplotter  - P3MN100WSE



SWx series maximizes the benefits of the touch screen with the reliability of an ergonomic keyboard.

The rotary knob gives you a fast and precise control in every condition, while the touch screen allows the best experience in map exploration and route building.

The ultra-bright and fully customizable display let’s you choose what to see and what to hide: map, FF, compass bar, data boxes.

The NMEA interface can transform your chart plotter into a multifunctional display to control your ais, autopilot, engine etc.

The Wi-Fi connectivity allows you to keep your chart plotter always up to date.

Features:

  • Multi-vision configurable layout
  • Full menu on Map
  • Navigation functions: Go To, Add Waypoints, Marks, MOB, Easy routing
  • Route management
  • Tracks recording and management
  • Customizable data boxes
  • Cursor Box showing distance and bearing
  • Customizable ship profile
  • Simulation mode
  • Grounding alarm
  • AIS compatible
  • Engine control page (when connected to an engine)

Cartography

SWx 1200w is compatible with the following cartography formats on microSD cards

In the Box:

  • SWx 1200w
  • Power supply/Data cablex1
  • Mounting bracket kit x 1
  • Screw knob x 2





TECHNICAL SPECIFICATIONS

Display size: 12”

Display resolution: 1024x768px

Display brightness: 1250 nits

Touch-screen: Capacitive multitouch

Back-lit keyboard

Built-in GPS sensor: 10Hz GPS/GLONASS

External GPS connector

NMEA 2000 NMEA 0183: 2x Rx/Tx on power cable

Memory slot: MicroSD

Wireless LAN connection compatibility

BT wireless technology capability

Mounting options: Bracket and flush mount

Waterproof: IPX6

Supply voltage: 10-35 Vdc

Operating temperature: -10°C / +60°C

Storage temperature: -20°C / +80°C

Transmitting frequency range: 2400 - 2483 MHz

Maximum transmitting power: 100 mW

Maximum power consumption: 24W

Write a review

Please login or register to review
  • Brand: Seiwa
  • Product Code: Seiwa SWx 1200w 12" Chartplotter
  • Availability: In Stock
  • RRP Inc VAT: £2,414.88


  • Our Price: £1,850.00
  • Ex VAT: £1,541.67
