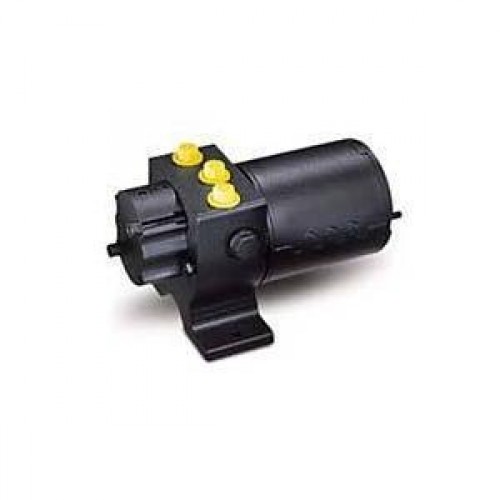

Raymarine Type 3 Hydraulic Pump 12v - M81122

Raymarine Type 3 Hydraulic Pump 12v - M81122


Reversing hydraulic pump for use with steering systems equipped with 350cc - 500cc hydraulic steering rams.

Designed for boats fitted with existing hydraulic steering systems.

Specifications

• Drive method DC Reversing hydraulic pump
• Maximum stall 80 bar(1160 psi)at 12 V
• Peak Flow Rate 2900 cc/min(175 cubic in /min)(no load)
• Power 12V Nominal 10 V to 15 V DC input
• Note: reduced voltages will severely degrade drive performance.
• Power Consumption 120 Watts
• Ram capacity (min-max)350-500 cc(21-30.5 cubic inch)
