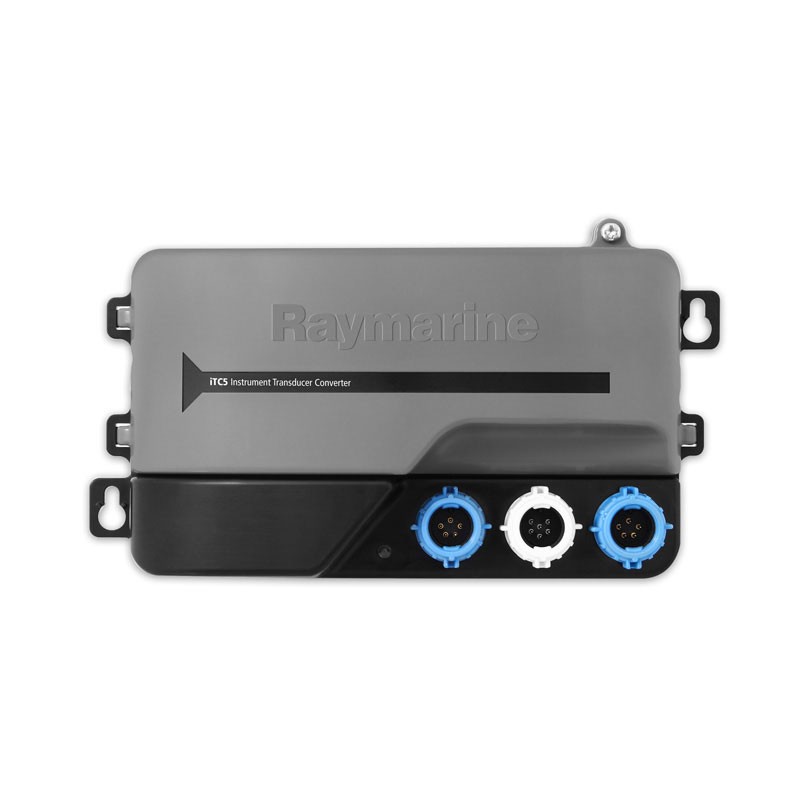

Raymarine iTC-5 Instrument Transducer Converter - E70010

Raymarine iTC-5 Instrument Transducer Converter - E70010

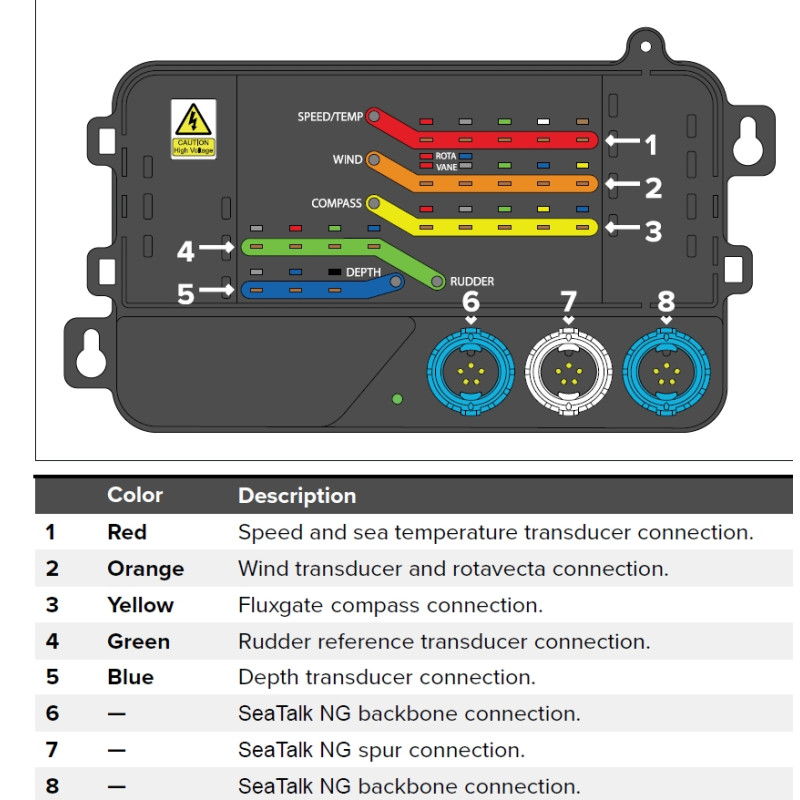

The Raymarine iTC-5 converts analogue transducer signals used in i70, ST70+ and ST70 instrument systems to SeaTalkng. Transducers for Speed/Temperature, Depth, Wind, Rudder Angle and Fluxgate Compass can be connected to the one iTC-5 unit, eliminating the need for multiple ST70 pods. Extended STng systems can support multiple iTC-5 units. SeaTalkNG connections at the base of the unit simply connect the iTC-5 unit into the SeaTalkng backbone.

Please note the ST40/i40/i50/i60 and ST60+ displays cannot calibrate the iTC-5. Only the i70 or i70S instrument display has full transducer calibration. The ST70/ST70+ can calibrate the Depth, Wind and Speed/Temp transducers (not Rudder or Compass). If you don't have an ST70/ST70+ or i70 in your system, then the ST40/i40/i50/i60/ST60+ displays must be interfaced directly to the relevant analogue transducers.

Axiom and AxiomPro MFD's with software versions 3.11.42 Cannes, or newer can also calibrate Speed, Depth and Wind.

Features:

• Nominal supply voltage 12 V dc
• Operating voltage range 9 - 16 V dc
• Current <150 mA peak operating current
• Power consumption Typical: 1.5 W
• Splash proof to IPX2
• 1 x SeaTalkng spur
• 5 x transducer connections with spade terminals
