Raymarine p70Rs Evolution EV-200 Hydraulic Power Pilot Pack - T70157

Raymarine p70Rs Evolution EV-200 Hydraulic Power Pilot Pack - T70157

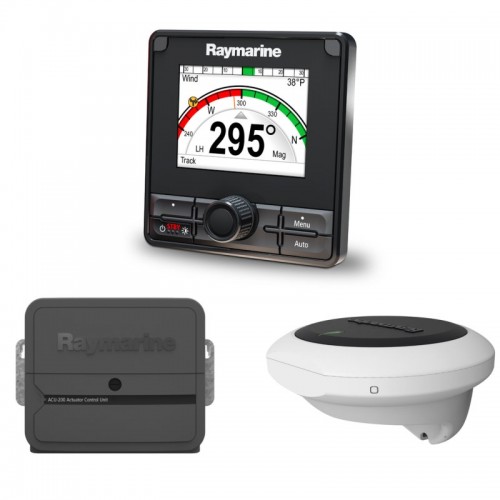

Raymarine Evolution with p70Rs Control Head and ACU-200 with Type 1 Hydraulic Drive - T70157


Engineered for simplicity, Evolution autopilots eliminate the need for complicated set up and calibration. Once Evolution is installed, getting started is as easy as switching the autopilot on.

Thanks to the intelligent EV sensor core, the autopilot automatically evolves and adapts to your vessel’s steering characteristics without any user adjustments.

Evolution AI™

The culmination of Raymarine’s 30 years of autopilot expertise, FLIR Systems research and development, and advanced aerospace guidance technology, Evolution AI™ control algorithms deliver a new level of accurate autopilot control.

This innovative breakthrough in autopilot intelligence enables Evolution autopilots to perceive their environment and then instantly calculate and evolve steering commands to maximise performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

The EV Sensor Core

At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

EV Sensor Core Benefits

  • Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change.
  • Flexible installation options. Mount above or below deck.
  • Simple SeaTalkng connectivity to the control head and ACU.
  • Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.
  • Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes.
  • Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.
  • Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. The ACU-200 is suitable for use with Raymarine Type 1 autopilot drives and other brands of drive within certain current draw constraints. These include Hypro hydraulic based drives and Lewmar electric drives with current draws upto 15Amps.

The p70Rs Autopilot Control Head

The p70Rs control head features vibrant colour display and are powered by Raymarine’s intuitive LightHouse user interface.

LightHouse organises all options into simple menu structures and with Evolution’s quick setup process you will be up and running in minutes.

The p70Rs features a rotary dial control for power boats. Use the rotary dial for menu and course changes or activate power steer mode and steer manually right from the p70Rs.

Drive Included

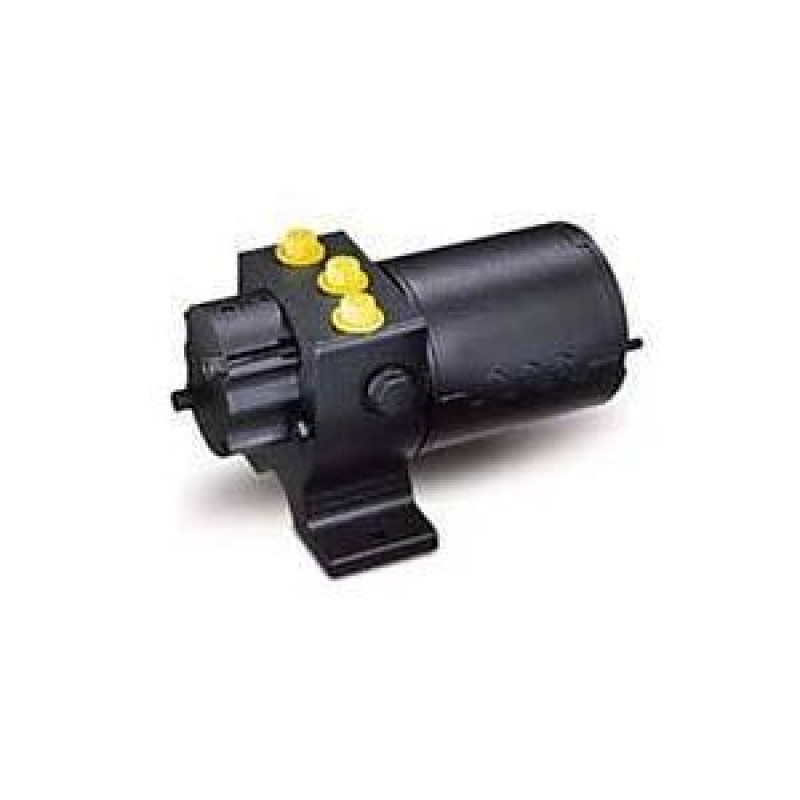

This system pack includes a Raymarine Type 1 Reversing hydraulic pump, part number - M81120

Suitable for hydraulic steering systems incorporating a steering ram with a capacity between 4.9-14 cubic inch (80cc - 230cc).

Pack Includes:

  • EV-1 Sensor Core
  • ACU-200
  • p70Rs Control Head
  • Evolution Cabling Kit
  • Evolution EV-unit seal pack
  • Evolution EV-unit wall bracket
  • Rudder Sensor
  • Type 1 Hydraulic Reversing Pump

No calibration required

E70096 EVOLUTION EV1 SENSOR CORE

E70099 ACU-200 WITH RUDDER FEEDBACK SENSOR

E70329 P70Rs COLOUR A/P HEAD: POWER

M81120 RAYPILOT TYPE 1 12V PUMP

R70160 Evolution Cabling Kit

Write a review

Please login or register to review
  • Brand: Raymarine
  • Product Code: Raymarine p70Rs Evolution EV-200 Hydraulic Power Pilot Pack
  • Availability: In Stock
  • RRP Inc VAT: £2,645.00


  • Our Price: £2,219.00
  • Ex VAT: £1,849.17
