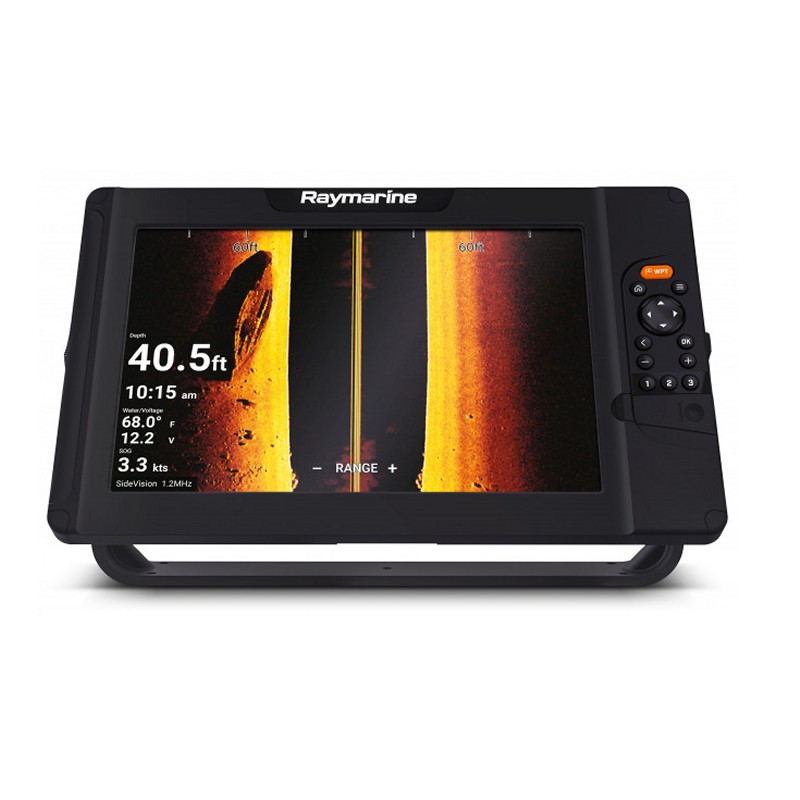

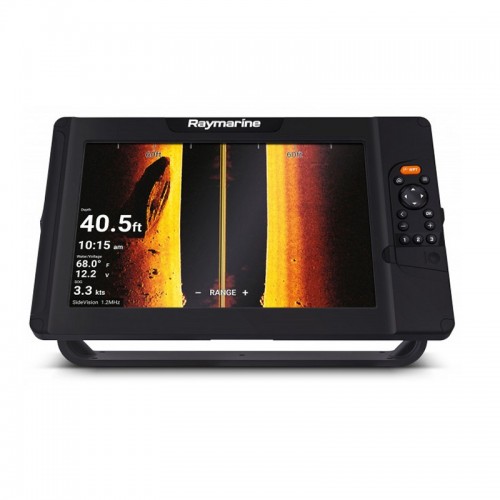

Raymarine Element 12HV 12" Chart Plotter with Hypervision - E70536

Raymarine Element 12HV 12" Chart Plotter with Hypervision - E70536

Raymarine Element 12HV 12" Chart Plotter with Hypervision - E70536


Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.



NMEA2000 integration with AIS, autopilot, sailing instruments, engines, tanks sensors, and VHF

Wi-Fi connection to Quantum radar

Display Size 12.0" Optically Bonded LCD

Display Resolution 1280 x 800 WXGA

Overall Dimensions

W x H x D (mm)        357 x 215 x 62mm (14.1 x 8.5 x 2.4 inches)

GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS

Sonar Type (Built-in) Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)

Sonar Connection 15 pin HyperVision™ type connector

Sonar Depth CHIRP Sonar = 274m (900 feet)

DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)

SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)

RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)

Radar Quantum wireless CHIRP compatible

Wi-Fi only connection

More info, Click here Raymarine Element HV Website

Write a review

Please login or register to review
  • Brand: Raymarine
  • Product Code: Raymarine Element 12HV Display No Chart, No Tducer - E70536
  • Availability: In Stock
  • RRP Inc VAT: £1,295.00

  • Our Price: £1,085.00
  • Ex VAT: £904.17
