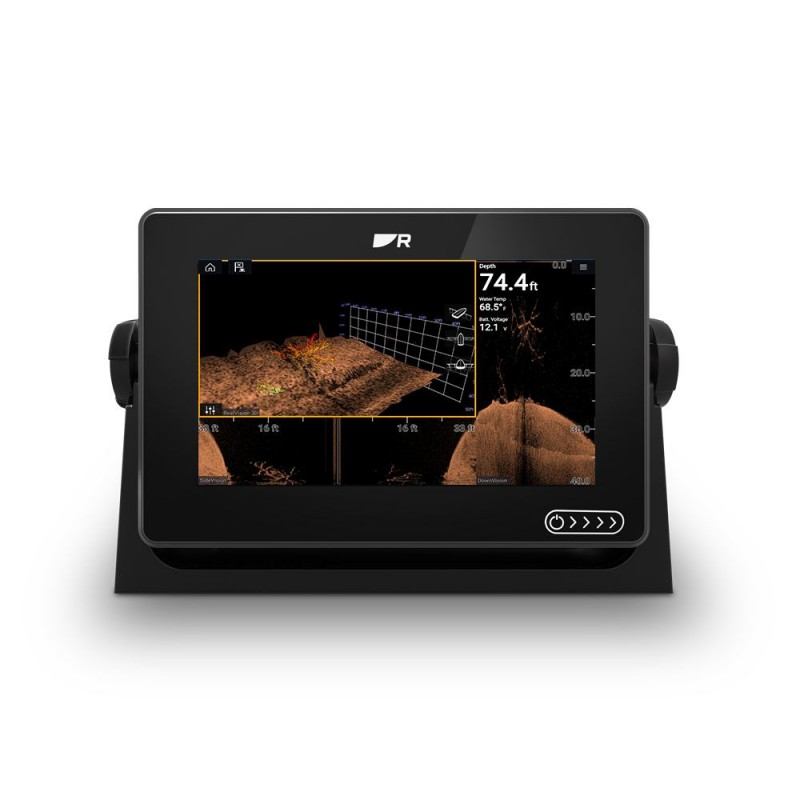

AXIOM+ 7 RV Multifunction 7" Display with integrated RealVision 3D and 600W Sonar

Transducer options available in the transducer section, along with compatibility and adaptor cable guidance

The performance-tuned Axiom+ is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom+ is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision 3D sonar.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Axiom+ features the renowned LightHouse OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

Real Vision 3D Sonar

Real Vision model includes built-in RealVision 3D Sonar technology. RealVision 3D transducers combine CHIRP DownVision™, CHIRP SideVision™, High Frequency CHIRP, and RealVision 3D into a single transducer housing. Additionally, Raymarine’s gyro-stabilized sonar technology compensates for boat movement, delivering life-like 3D sonar imagery.


Performance Tuned - Designed for speed, performance, and future expansion.

Fast & Fluid - Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.

Quad-Core Power - Powerful quad-core processor, plus increased onboard storage for personal data and apps.

Lightghouse OS - Smart and intuitive LightHouse OS makes navigating easy.

Augmented Reality - Clearcruise Augmented Reality-capable for smarter navigation decisions.

Hydrotough Display - Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.

Brighter - 7 inch all-weather displays are up to 25 percent brighter (up to 1,800 nits).

Sharper - IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.

Display Size: 7.0 inch High Density IPS

Display Resolution: 1024 x 600 (WSVGA)

Display Type: Multitouch with HydroTough™ rugged hydrophobic coating

Brightness: 1,500 nits

Viewing Angle: 85° Top, Bottom, Left, Right

Dimensions W x H x D: 210 x 142 x 77mm 7.92 x 5.24 x 3.0in

Weight: 3 lbs

Mounting Options: Surface, Flush, Trunnion, (Front installation bracket available)

Waterproof Rating: IPX7

Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)

Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

Voltage: 12V DC (8V to 16V DC)

Power Consumption:  RV Sonar version 9.84 Watts

Write a review

Please login or register to review
  • Brand: Raymarine
  • Product Code: Raymarine Axiom+ 7 RV MFD with RealVision
  • Availability: In Stock
  • RRP Inc VAT: £1,095.00

  • Our Price: £945.00
  • Ex VAT: £787.50

Tags: 7", RealVision
