Nasa Marine Target HF3P SSB Receiver - HF3P
Nasa Target HF3P SSB Receiver - HF3P
Until now quality single side band receivers have only been available at high cost. The Target HF3 is a masterpiece of R.F.Engineering covering the entire spectrum between 30Khz to 30Mhz.
For those new to single side band reception the unit comes complete with everything needed to "get on the air" including a very comprehensive instruction manual which includes a list of useful marine frequencies. A button on the front of the receiver changes reception mode, from a narrow filter for SSB recepetion to a wide filter which enables high quality audio signals to be heard from broadcast stations around the world.

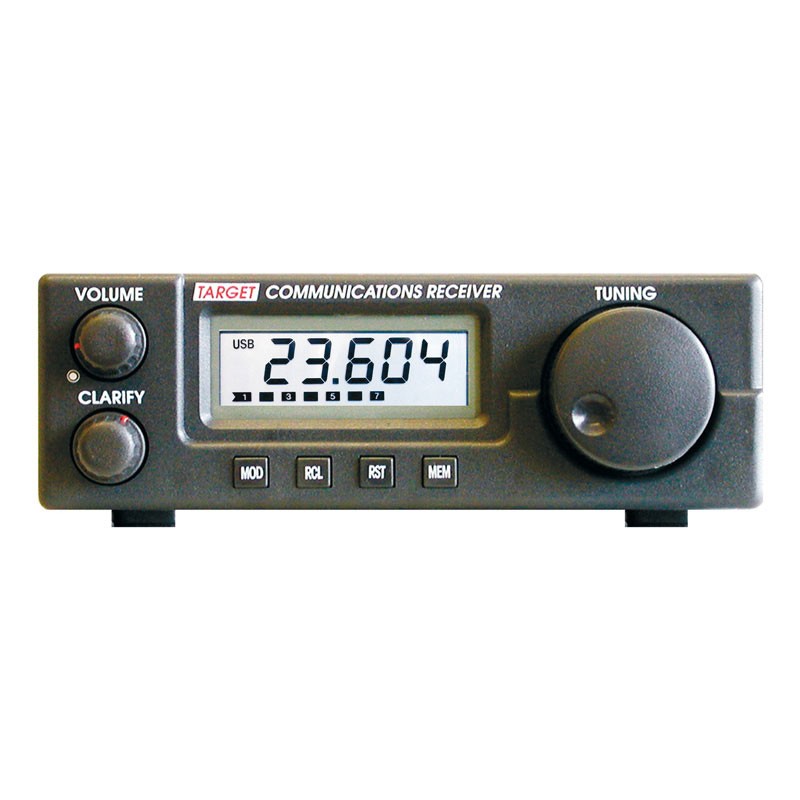

The large, clear liquid crystal display shows the precise frequency tuned to and there is no need for constant 'correcting' with the tuning knob so often associated with SSB signals as the receiver is fully synthesised.
The HF3/P is supplied complete with wire antenna, 12 volt mains power supply and instruction book. A fixed level audio output suits most third party weatherfax software.
- Signal level indicator
- Fully synthesised
- Frequency range - 30Khz - 30Mhz
- Modes - USB/AM/LSB
- Single side band - 3.8Khz wide
- 10 memory channels
- AM - 6Khz wide
- Audio output - 2 watts
- Power supply - 12 volts DC
- Power consumption - 300mA
- Dimensions - Width 180mm, Height 58mm, Depth 170mm
