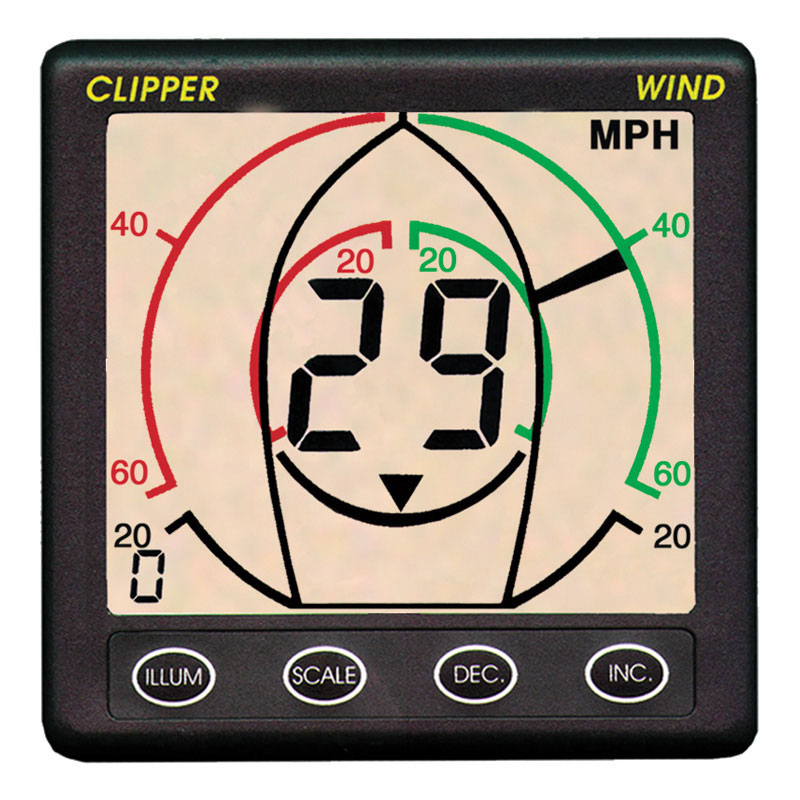

NASA Marine Clipper Close Haul Meter - CLIP-CHWIND
NASA Marine Clipper Close Haul Meter - CLIP-CHWIND
Close Hauled repeater display used as an additional to a Clipper Wind System.
This connects directly to the master wind unit. As well as repeating the wind speed it shows wind direction in high resolution when sailing close to - or running with the wind.
Features:
- Supply voltage Nominal 12v DC
- Consumption, 50mA+ (25mA for display illumination max)
- Keypad adjustment of masthead alignment
- 7 levels of display backlighting
- Display case size 110 x 110mm
- Depth behind panel 30mm
- Cable length - 5mtrs
