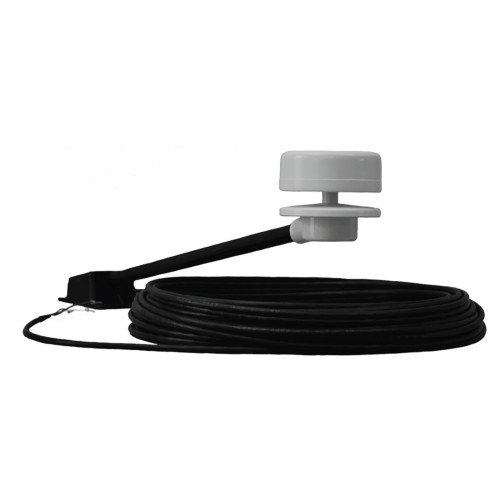

The CV7 is an ultrasonic wind speed indicator/wind vane especially designed for sailboats. The standard model is designed to be mounted on the masthead thanks to its oblique mounting arm. It can be fitted on all types of rigging.

OVERVIEW

The CV7 is an ultrasonic wind sensor suitable for sailing navigation. It is fitted on the masthead with an oblique mounting arm.

It is supplied ready to be mounted with a 25 m cable.

SPECIFICATIONS

Cabling:

4 wires:

– Red: +12 VDC (9-16 VDC, 12mA)

– Blue: 0V

– Yellow: NMEA0183® output +

– Green: NMEA0183® output –

Measurement range:

Wind speed: 0.25 to 80 knots

Wind angle: 0 to 359°

Temperature: -15°C (without icing) to +55°C

Measurement sensitivity:

Wind speed: 0.25 knots

Wind angle: +/-1°

Air temperature: +/- 1°C

Operating temperature: –15°C (without icing) to +55°C

NMEA0183® sentences

IIMWV: Angle, Wind speed and Measurement validity

WIXDR: Air temperature

PLCJ: manufacturer’s data

PLCJE: manufacturer’s data

Transmission speed: Bd 4800

Complies with the European CE standard.

COMPATIBILITY

Connection compatibility:

NMEA0183® – Bd 4800

Compatible with numerous devices, it has been tested with the following systems:

FURUNO©, RD30, RD33, depth sounders, Radars, NavNet, NavNet2, NavNet3, TZT…

GARMIN©, and all devices equipped with a “wind” window and an NMEA0183®input port

NKE Topline, TL25, GyroPilote, MultiGraph, NMEA ®input interface/Topline

AdvanSea W400 and W400A

SIMRAD: IS12 MEGA, IS15 Wind, IS15 Expander, SimNet AT10 interface

Navigation software: Adrena, MaxSea / TimeZero, OpenCPN, ScanNav, Seapro, Sodena,

StatMETEO

For the Silva, Nexus and Furuno FI30 devices, refer to page: CV7-SIL

DELIVERY CONTENTS

– Sensor CV7 with a 310 mm slanted arm

– Mounting Bracket

– Cable (25 m) 4 X 0.22mm²

–User and installation manual

– 2-year warranty, parts and labour, in our premises
