LCJ Ultrasonic Wind Transducer with WindyPlug Interface - CV3F-WINDYPLUG
LCJ Ultrasonic Wind Transducer for Motor and Work Boats with WindyPlug Interface - CV3F-WINDYPLUG
The CV3F-WINDYPLUG is an ultrasonic wind speed indicator/wind vane especially designed for motor and work boats and bundled with the WINDYPLUG Interface.
The WINDYPLUG interface converts the data into NMEA2000.
Overview

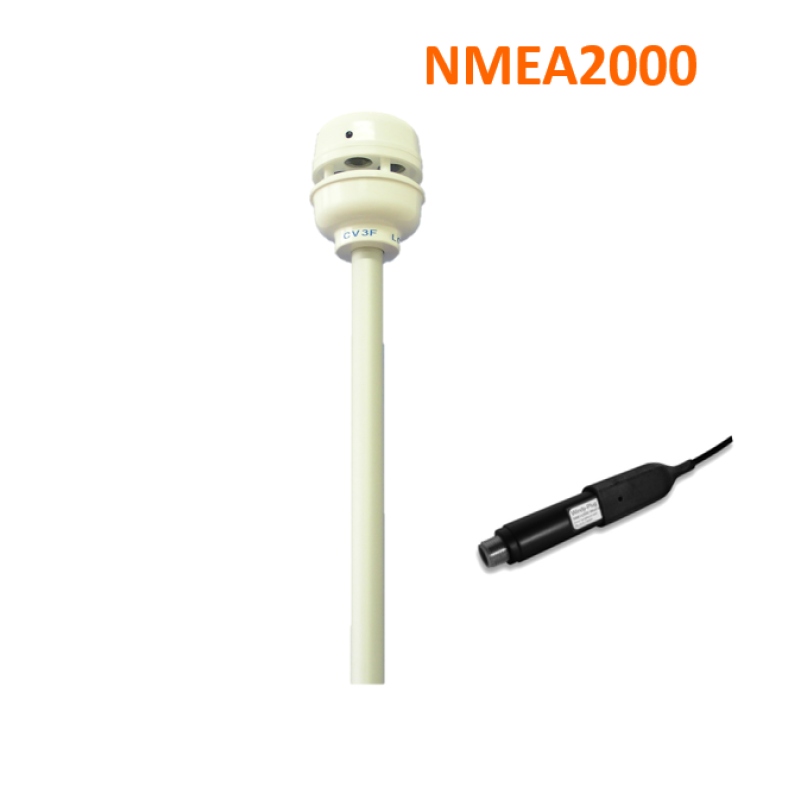

The CV3F-WindyPlug pack includes a CV3F ultrasonic wind sensor combined with the WindyPlug.
The CV3F is an ultrasonic wind sensor designed for motor and work boats. This sensor is mounted on a vertical stem, Ideal for mast mounting.
This new generation measurement instrument provides wind module data in knots or meters per second, relative direction in degrees and temperature in degrees Celsius, on a normalised serial electric line.
Manufactured without mechanical parts, it is not subjected to wear. No spare parts are needed. Moreover, this sensor is resistant to shocks, birds….
It is not affected by the gyroscopic effect and remains accurate even to low wind. It compensates heel, and its small size limits windage. The built-in electronics are protected in a rugged housing.
The WindyPlug, which is combined with it, also includes a barometer. An interface enables it to connect the wind sensor to a NMEA2000® installation. It features a MICRO C male plug enabling direct connection to the NMEA2000® bus.
COMPATIBILITY
– NMEA2000® V3 Standard
Tested and approved with the following devices: B&G, Furuno, Garmin, Humminbird, Lowrance, Raymarine, Simrad
– Navigation software connected to your NMEA2000 network: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, SeaPro,
Cabling:
4 wires:
– Red: +12 VDC (9-16 VDC, 9mA)
– Blue: 0V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –
Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -15°C (without icing) to +55°C
Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: +/-1°
Air temperature: +/- 1°C
WindyPlug:
Connector: MICRO male NMEA 2000®
Protection rate: IP66 (WindyPlug connected)
Power supply: via NMEA2000®. 8V / 28VDC
Consumption: 1 LEN / < 40mA with sensor.
Operation indicator: 1 flashing LED
Pressure sensor: hydrophobic membrane
Pressure measurement range: 850 hPa / 1150 hPa
Resolution*:
0,1 hPa with NMEA2000® V3
Relative accuracy*: +/- 0.5 hPa at 20°C
Absolute accuracy*: +/- 1.5 hPa at 20°C
*1 hPa = 1 mbar = 0.003 inHg / 0 °C = 32 °F
Data:
NMEA2000 V3 PGNS:
-TX: 59904; 60928; 126464; 126996; 130306; 130312; 130314
– RX: 59392, 59904; 60928; 130315
Complies with the European CE standard
