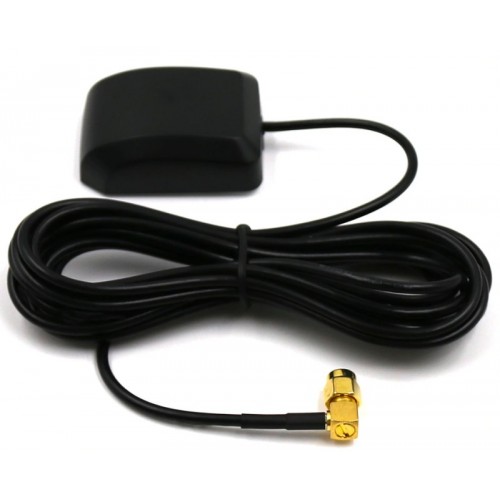

KME GPS Puck Antenna with SMA Connector

KME GPS Puck Antenna with SMA Connector

KME GPS Puck Antenna with SMA Connector


compact, low profile GPS Antenna, ideal for AIS or VHF Transceivers that require a dedicated GPS antenna.

Compact size make these ideal for tucking above headlinings below GRP deck or locating inside GRP display pods to avoid the hassle of routing cables through to radar arches and pushpit rails.

Please note, this antenna does have a magnetic mount in the base, so don't mount it close to a compass!


1. Antenna Specification:

Center Frequency:1575.42MHz

V.S.W.R:<=1.5

Band Width:±5 MHz

Polarization:Right-hand polarization

Impendence:50Ω


2.LNA Specification:

LNA Gain(Without cable):≥27dB

Noise Figure:<=1.5dB

Interference suppression:20dB(f0±140MHz)

V.S.W.R :<2.0

DC Voltage:3.0±0.3VDC;5.0±0.5VDC

DC current:<=20mA


3.Mechanical Specification:

Weight:<47()gram

Size:46×46×13mm

3m Cable:RG174

Connector: SMA

Mounting: Magnetic base or attach using double sided tape.



Write a review

Please login or register to review
  • Brand: KME
  • Product Code: KME GPS Puck Antenna with SMA Connector
  • Availability: In Stock
  • RRP Inc VAT: £13.80


  • Our Price: £11.40
  • Ex VAT: £9.50
