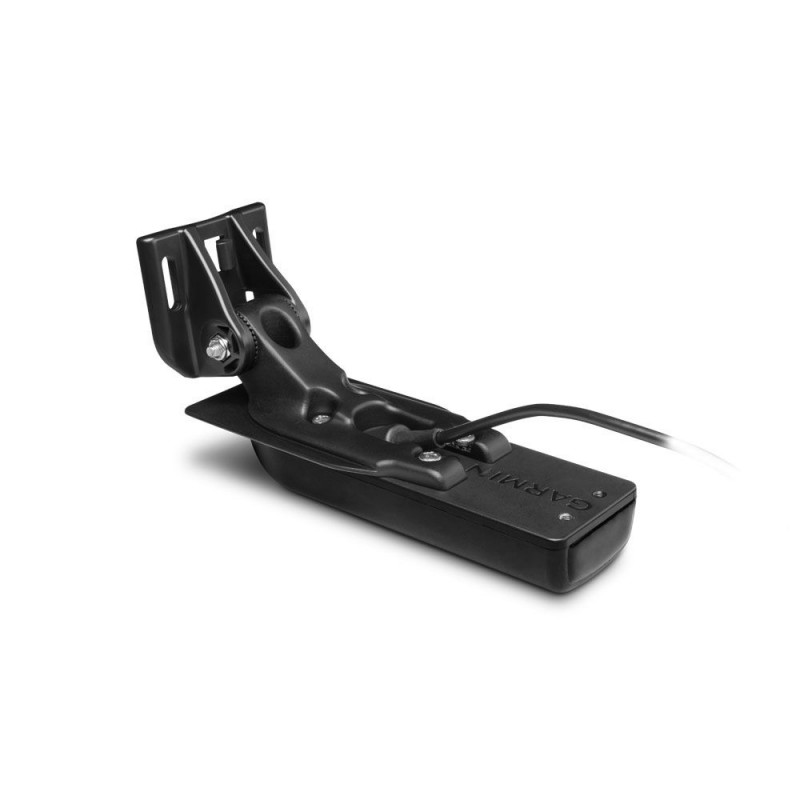

Garmin GT24UHD-TM Ultra High Definition Transom Mount Transducer - 0101290800
Garmin GT24UHD-TM Ultra High Definition Transom Mount Transducer - 0101290800
Garmin GT24UHD-TM 8 Pin Ultra High Definition All-in-One Transom Mount Transducer
Ultra-clear view of what's below
The GT24 ultra high-definition all-in-one transducer provides image details so clear and precise, you can actually see fish hanging just off branches of submerged trees, brush and rocks. You can see the difference between bigger and smaller fish and even see individual fish swimming in bait balls. You get the highest resolution ClearVü scanning sonar images available plus amazingly clear high wide CHIRP traditional sonar all in one transducer.
Ultra performance
Ultra high-definition scanning sonar shows you incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü scanning sonar. It's easy to install with included transom and trolling motor mounts so you can start fishing faster.
For installation, follow the included instructions carefully to avoid damaging your boat.
Features:
- One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
- High wide CHIRP traditional sonar provides remarkably clear target separation and definition
- See incredibly detailed images of fish and structure up to 60 m (200 ft) below your boat with 800 kHz ClearVü sonar
- Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts.
FEATURES
Cable length - 20 ft.
Power - CHIRP Traditional 350 W; ClearVü 350 W
Frequency - CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz)
Maximum depth - CHIRP: 800 ft.; ClearVü 200 ft.
Number of pins - 8-pin
Beam width - CHIRP: 24°-16° ClearVü: 0.94°x60° @ 800 kHz
Depth/speed/temperature - Depth and Temperature
Supported dead rise/transom angles - 0°-70° degree transom
GT24UHD-TM
Transom mount

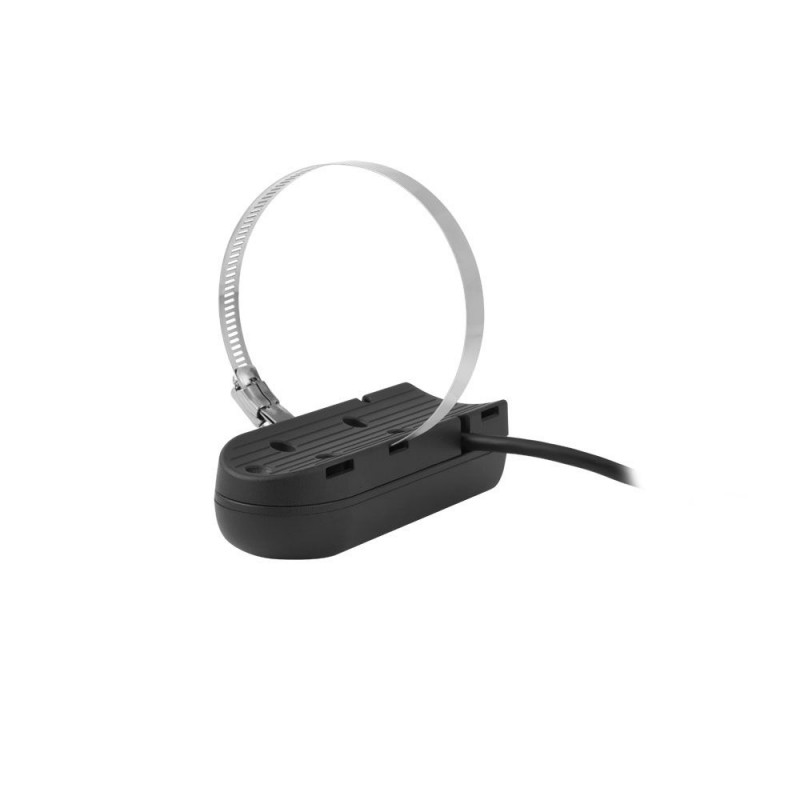

Trolling motor mount
Mounting hardware
Documentation
