Garmin GT22HW-TM 8 Pin Dual Function Transom Mount Transducer
GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP ClearVü (455/800 kHz) element has a power rating of 350 W.
GT22HW-TM is ideal for mounting to a trolling motor due to its compact size.
For installation, follow the included instructions carefully to avoid damaging your boat.
FEATURES
Cable length - 20 ft.
Power - CHIRP Traditional 250 W; ClearVü 350 W
Frequency - CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Maximum depth - Traditional: 800 ft.; ClearVü: 500 ft.
Number of pins - 8-pin
Beam width - Traditional: 24°-16° ClearVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz
Depth/speed/temperature - Depth and Temperature
Supported dead rise/transom angles - 0°-70° degree transom
GT22HW-TM transducer

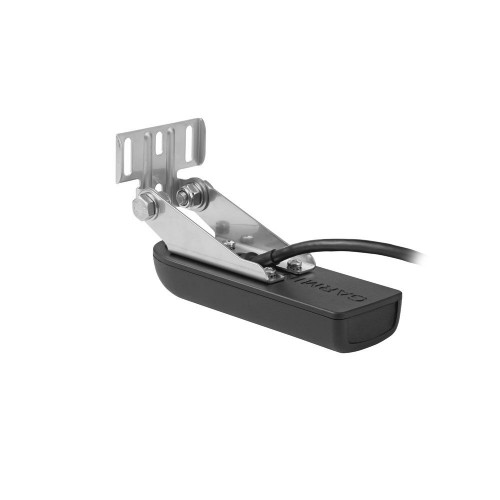

Transom mount

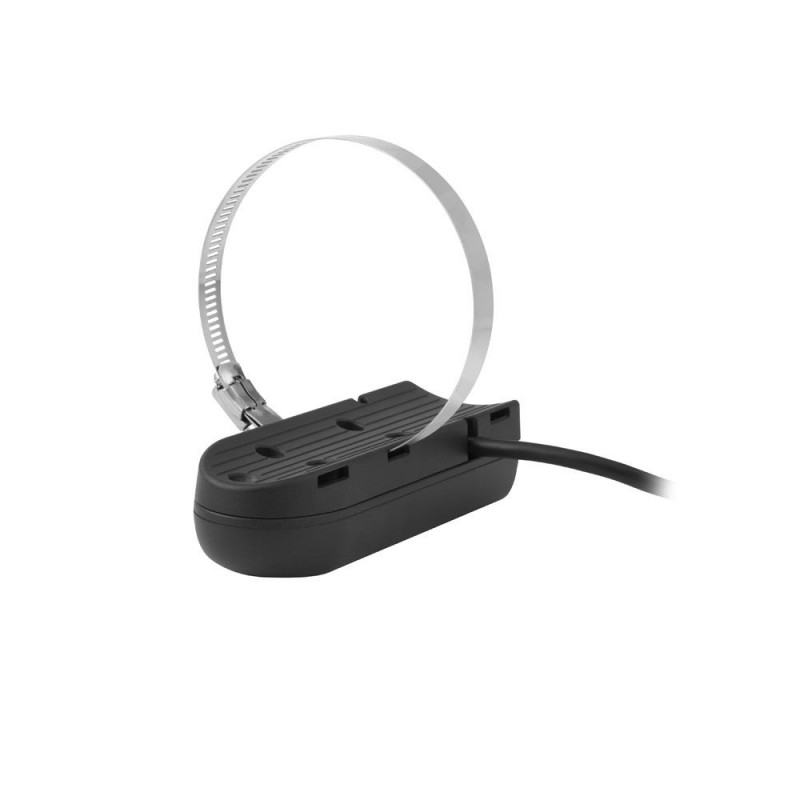

Trolling motor mount
Mounting hardware
Documentation
