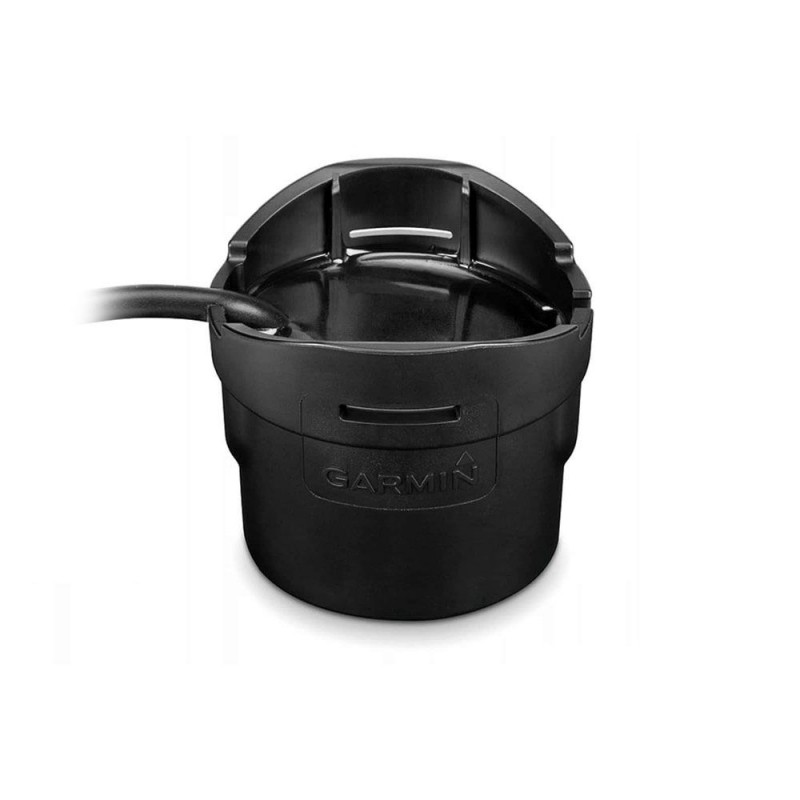

Garmin GT8HW-IH Wide CHIRP In-hull Transducer - 0101240110

Garmin GT8HW-IH Wide CHIRP In-hull Transducer - 0101240110

Garmin GT8HW-IH Wide CHIRP In-hull Transducer - 0101240110

Garmin GT8HW-IM 8 Pin Traditional High Wide CHIRP (150/240khz - GT8HW-IM)  In-hull Transducer

GT8HW-IH transducer is ideal for boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It requires a flat section (less than 6°) in the hull to be mounted and is excellent for boats traveling at high speeds that want to maintain accurate depth readings.The 8-pin transducer features high-wide CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W. It can be used in conjunction with a GT30-TM transducer and an adapter cable so you can maintain depth at high speeds and scanning capabilities at trolling speeds.

For installation, follow the included instructions carefully to avoid damaging your boat.


Cable length - 20 ft.

Power - 250 W

Frequency - CHIRP High Wide (145-230 kHz)

Maximum depth - 800 ft. freshwater

Number of pins - 8-pin

Beam width - 24°-16°

Depth/speed/temperature - Depth

Supported dead rise/transom angles - 0°-6° degree transom

GT8HW-IH transducer

In-hull fitting


Write a review

Please login or register to review
  • Brand: Garmin
  • Product Code: Garmin GT8HW-IH Wide CHIRP In-hull Transducer
  • Availability: In Stock
  • RRP Inc VAT: £139.99

  • Our Price: £119.00
  • Ex VAT: £99.17
