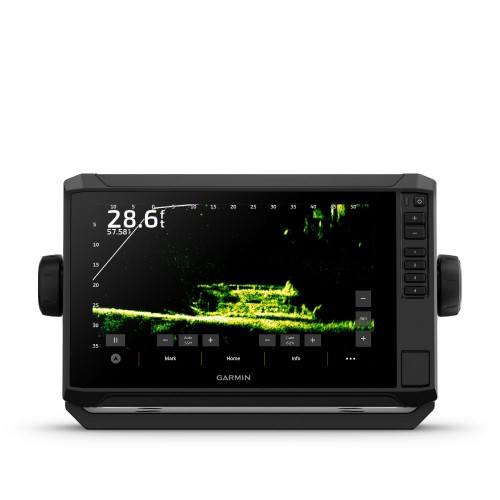

Garmin ECHOMAP UHD2 95sv Touch Chartplotter without Transducer - 0100269010

Garmin ECHOMAP UHD2 95sv Touch Chartplotter without Transducer - 0100269010

Garmin ECHOMAP UHD2 95sv Touch Chartplotter without Transducer - 0100269010


Supplied with preloaded Garmin Navionics+ charts for the U.K., Ireland, and the Netherlands.

When it comes to catching more fish, they say, "talk to a local." With the ECHOMAP UHD2 chartplotter, which offers support for Garmin's best-in-class sonar, built-in Garmin Navionics+ for U.K and Ireland, and a premium touchscreen display with keyed-assist, know the water even better than they do.

Sonar Support - With support for crisp, clear traditional sonar and brilliant ClearVü and SideVü scanning sonars, the fish will have nowhere to hide. The ECHOMAP UHD2 also supports LiveScope live-scanning sonar.

Vivid Colour Palettes - High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

Preloaded Charts - Chartplotters come with built-in Garmin Navionics+ cartography for U.K., Ireland and the Netherlands which includes a 1-year subscription for daily updates, raster cartography and more.

Wireless Networking - Wirelessly share information such as sonar, waypoints and routes  with another compatible ECHOMAP UHD2 chartplotter on the boat.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin QuickDraw Community data and more.

Auto Guidance Technology - Built-in Garmin Navionics+ charts for U.K., Ireland and the Netherlands include downloadable Auto Guidance+ technology with the ActiveCaptain app.

Troll With Force - The ECHOMAP UHD2 chartplotter wirelessly connects to Garmin Force Trolling Motors to create and follow routes, navigate to waypoints, control speed, check battery life and more.

Multi-Band GPS - Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS.

Features:

  • The bright 9" touchscreen display with keyed-assist is user-friendly and easy to read
  • Good things come in threes. Supports three sonar types: Garmin traditional, ClearVü and SideVü sonars
  • Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid colour palettes
  • Wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter
  • Comes preloaded with Garmin Navionics+ mapping for U.K., Ireland and the Netherlands.

In The Box

  • ECHOMAP UHD2 95sv
  • 12-pin sounder to 8-pin transducer cable
  • Power cable
  • Tilt/swivel mount with quick release cradle
  • Protective cover
  • Hardware
  • Documentation

General

Dimension 10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8 cm)

Weight 2.9 lbs (1.3 kg)

Water rating IPX7

Touchscreen Yes

Display Type WSVGA, TN

Display Size 7.8″ x 4.5″, 9″ (19.8 x 11.5 cm, 22.9 cm)

Display Resolution 1024 x 600 pixels

Mounting Options Bail or flush

Input Touchscreen with Keyed Assist


Maps & memory

Accepts Data Cards 1 microSD™ card; 32 GB maximum size

Waypoints 5,000

Track points 50,000

Tracks 50 saved tracks

Navigation Routes 100


Sensors

GPS Yes

GLONASS Yes

Galileo Yes

BeiDou Yes

Has built-in receiver Yes

Receiver 10 Hz

NMEA 2000® compatible Yes

Supports WAAS Yes

Supports multi-band, multi-constellation GPS Yes


Built-in maps

Built-in Auto Guidance+ Yes (downloadable via ActiveCaptain app)

Garmin Navionics+ Inland & Coastal Yes (see Additional)

Garmin Navionics+™ (Coastal) Yes (see Additional)

Garmin Navionics+ (Inland) Yes (see Additional)

Tide tables Yes (see Additional)


Optional map support

BlueChart g3 Yes

BlueChart g3 Vision Yes

LakeVü g3 Yes

LakeVü g3 Ultra Yes

Garmin Navionics+™ Yes

Garmin Navionics Vision+™ Yes

TOPO 100K Yes

Standard Mapping Yes

Garmin Quickdraw Contours Yes


Chartplotter features

AIS Yes

DSC Yes

Supports Fusion-Link™ compatible radios Yes

ActiveCaptain Mobile Planning Compatible yes

Sailing features Yes


Electrical features

POWER INPUT 9 to 18 Vdc

Typical current draw at 12 Vdc 1.72 A

Maximum current draw at 12 Vdc 3.5 A

Maximum power usage at 10 Vdc 20.7 W


Sonar features & specifications

Displays sonar Yes

Power output 500 W

Traditional sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)

ClearVü Built-in 260/455/800/1000/1200 kHz

SideVü Built-in 260/455/800/1000/1200 kHz

Panoptix™ sonar Yes

LiveScope Yes


Connections

NMEA 2000® ports yes

Garmin Marine Network Ports 1

12-pin transducer ports 1

Bluetooth® calling Yes

ANT® (Connectivity) Yes

Garmin Wi-Fi network (local connection) Yes


Security Information

Security updates until at least (YYYY-MM-DD) 2025-01-11


Additional

Garmin Navionics+ (inland and coastal): 95sv Canada, Australia and New Zealand

Garmin Navionics+ (coastal): 94sv U.S. coastal, 95sv UK/Ireland

Garmin Navionics+ (inland): 93sv U.S. lakes

Tide tables: 93sv, 94sv, 95sv

Write a review

Please login or register to review
  • Brand: Garmin
  • Product Code: Garmin ECHOMAP UHD2 95sv Touch Chartplotter without Transducer
  • Availability: In Stock
  • RRP Inc VAT: £1,039.99


  • Our Price: £815.00
  • Ex VAT: £679.17
