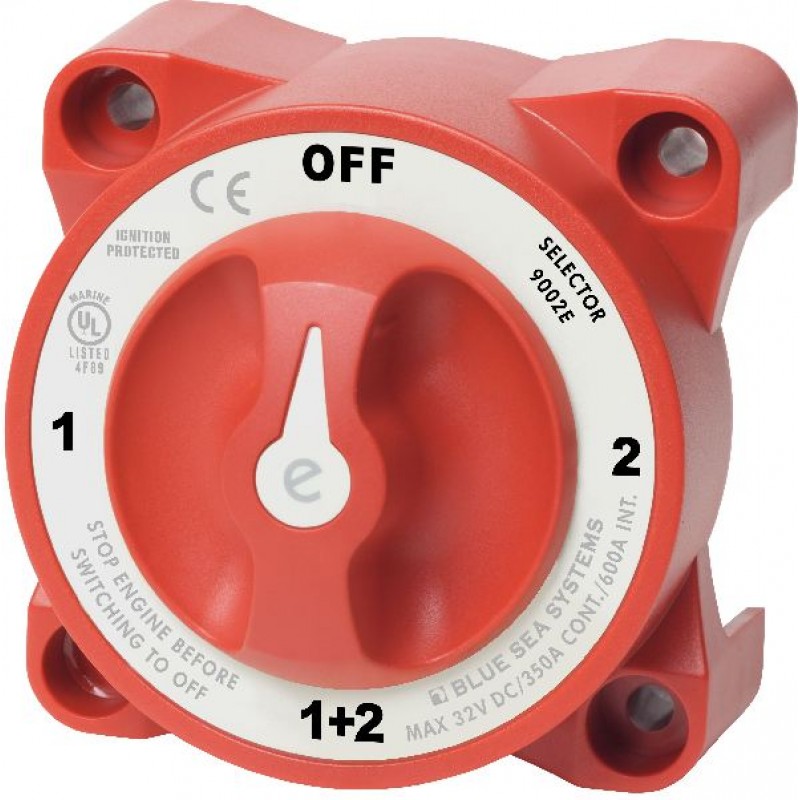

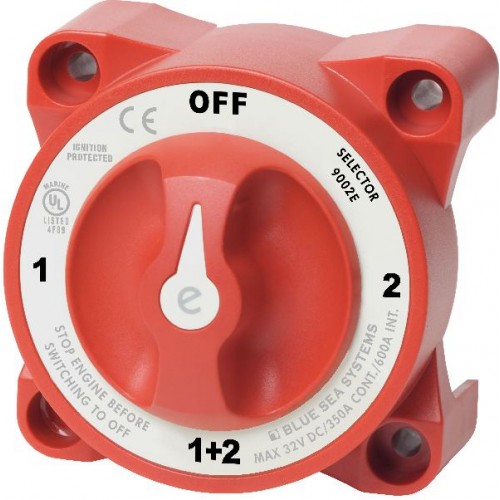

Blue Sea Battery Switch 9002e 4Way AFD - 29002

Blue Sea Battery Switch 9002e 4Way AFD - 29002

Blue Sea Battery Switch 9002e 4Way AFD - 29002



Switches isolated battery banks to all loads or combines battery banks to all loads

Includes AFD (Alternator Field Disconnect)

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Marked Ignition protected - Safe for installation aboard petrol powered boats.

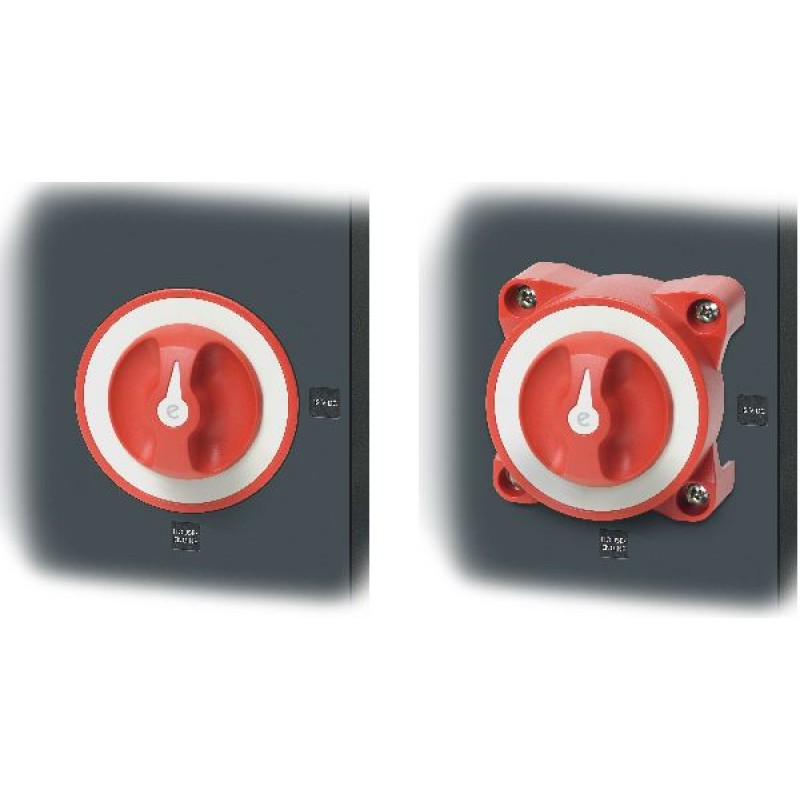

  • Case design allows surface or rear panel mounting
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches.
  • Cranking Rating: 10 sec. 2,000 Amps
  • Cranking Rating: 1 min. 1,000 Amps
  • Intermittent Rating: 5 min. 600 Amps
  • Continuous Rating 350 Amps
  • Maximum Voltage Rating 32 Volts DC

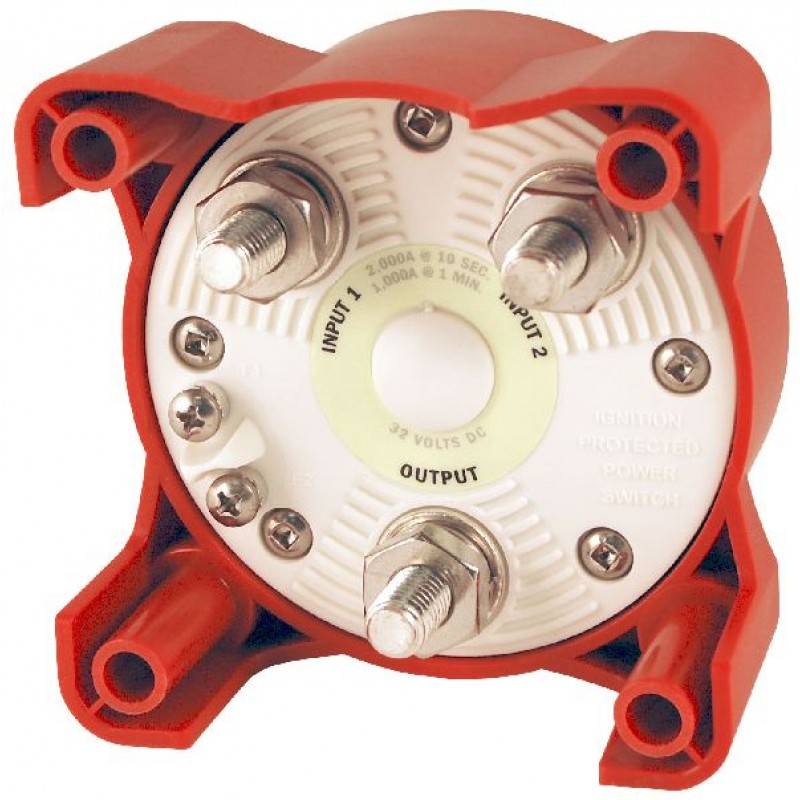

  • Terminal Stud Size 3/8"-16 (M10)
  • Terminal Stud Torque 140 in-lb (15.82 N ·m) max.
  • Mounting Holes Accept 1/4" (M6) Screw
  • Cable Size to Meet Ratings 4/0 AWG (120mm ²)
  • Cable Clearance For 4/0 AWG Cables 1.10" (27.9mm)
  • Weight Lb (Kg) 1.15 (0.52)

Write a review

Please login or register to review
  • Brand: Blue Sea Systems
  • Product Code: Blue Sea Battery Switch 9002e 4Way AFD - 29002
  • Availability: In Stock
  • RRP Inc VAT: £73.76


  • Our Price: £57.00
  • Ex VAT: £47.50
