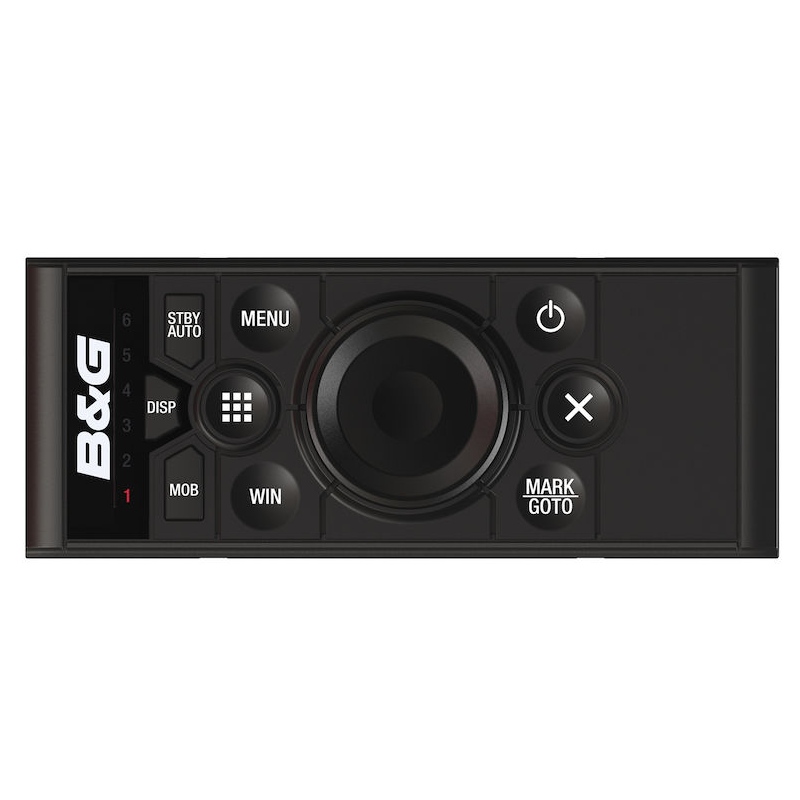

B&G ZC2 Remote Control Landscape - 000-12513-001

B&G ZC2 Remote Control Landscape - 000-12513-001

B&G ZC2 Remote Landscape - 000-12513-001

The ZC2 remote controller has been designed for use with ZEUS²/³,ZEUS²/³ Glass Helm and Vulcan MFD systems and brings simple and precise MFD control in even the roughest sea conditions. ZC2 has been designed for many mounting configurations and has a solution for every install

  • Helm chair arm mount
  • Dash mount
  • Landscape dash mount
  • Flush mount

Mounting options

  • Dash mount with 8 mm (0.32") profile
  • Narrow width  enables easy chair arm mounting
  • Total flush mount (requires bracket)


  • Control up to 6 MFD displays
  • Functions with ZEUS² all sizes and ZEUS² Glass Helm and Vulcan
  • Keypad configuration is optimized for Simrad HEROiC software control
  • Aluminium control dial with build in cursor functions
  • High volume alarm output for critical notifications
  • Single NMEA 2000 connection
  • ZC2 features a single control dial that provides multi axis controls
  • Rotary selector for menu select, chart zoom etc.
  • X,Y cursor pad for chart panning and cursor placement
  • Push to select enter key

In addition, ZC2 also has dedicated keys for:

  • MFD display selection
  • Man Overboard – MOB
  • Autopilot engage/Standby
  • Home
  • Menu
  • Window
  • Mark/Goto
  • Exit
  • Power

    Control up to six Zeus², Glass Bridge or Vulcan multifunction displays

     Autopilot remote control via any networked display

     High-quality aluminium control dial with built-in cursor functions

     MOB function

     Landscape orientation (portrait version also available)

     Narrow design perfect for chart table mounting

     Dash mount with low 8mm profile

     Zero-profile flush mount with optional bracket

     Integrated high-decibel speaker for critical alarms

     Quickly switch displays with dedicated button and LED indicators

     Single NMEA 2000® connection


    NMEA 2000 2 x NMEA2000 Micro-C port, 2 LEN


    Power Consumption, max. 1.0W

    Power Consumption, min. 0.5W

    Power Consumption, typical 0.6W

    Recommended Fuse Rating 5A

    Supply Voltage 12V DC (10-16V DC)

    Humidity Up to 95% RH


    Operating Temperature Range -15°C to +55°C (5°F to 131°F)

    Waterproof rating IPx6


    Compass Safe Distance - Metric, imperial 200mm (0.9')


    Dimensions (W x H x D) 150 x 60 x 45mm (5.9 x 2.4 x 1.8")

    Mounting Type Flush

    Weight 0.3 kg (0.66 Lbs)


    Warranty Period 2 years

    Interface keypad

    Write a review

    Please login or register to review
    • Brand: B and G
    • Product Code: B&G ZC2 Remote Control Landscape - 000-12513-001
    • Availability: In Stock
    • RRP Inc VAT: £499.99

    • Our Price: £449.00
    • Ex VAT: £374.17
