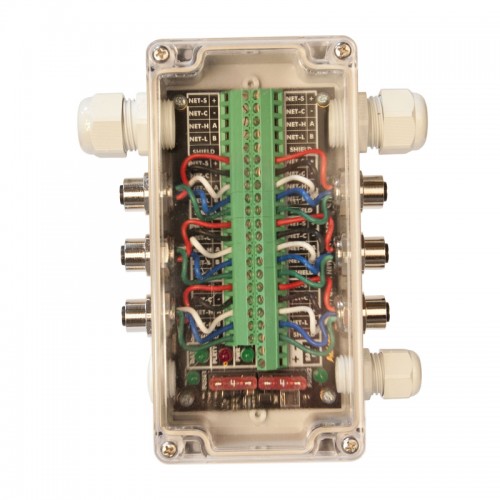

This Actisense™ Quick Network Block (QNB-1) allows backbone networking connections to be made easy and fault-free on National Marine Electronics Association (NMEA) buses and networks.

The QNB-1-PMW version is fitted with six standard NMEA 2000 M12 (Micro-fit) female connectors which allow 'plug and play' connections for quick and easy installation.

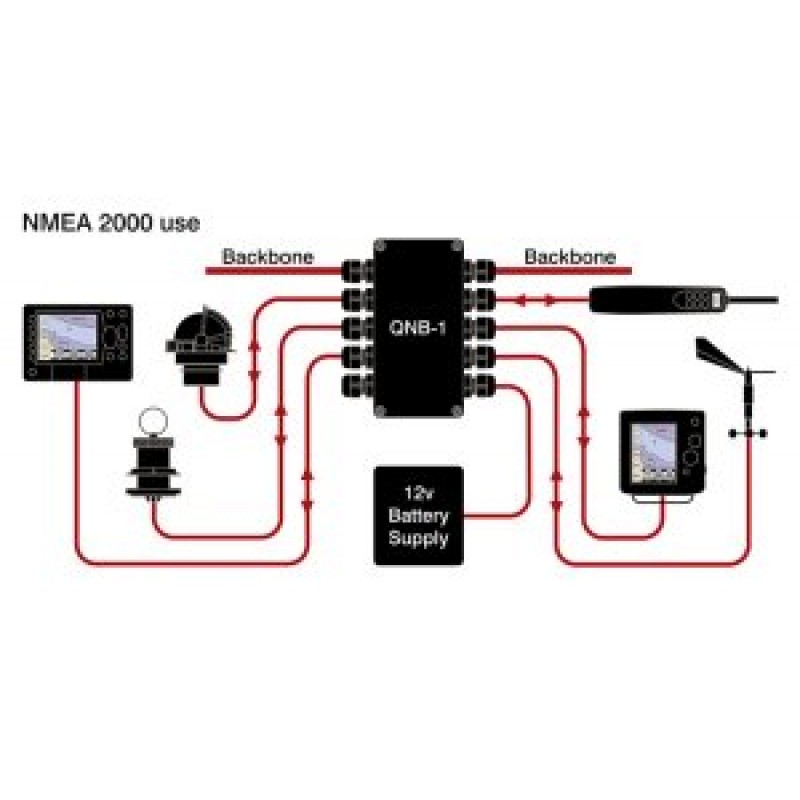

When used on an NMEA 2000 network, the QNB-1 is a multi-drop network backbone connection block, adhering to the barrier strip connection type detailed in the NMEA 2000 specification. This allows for 2 backbone connections (in & out), up to 6 drop connections and a power entry point.

The power entry connection is protected by two 4 Amp fuses, providing current protection to each half of the network backbone.

Useful LED indicators show power status, detect a power reversal, indicate whether the fuses are still intact, and detect the presence of data on the connected bus or network.

  • Eight x 5 way connection points provided, allowing up to six NMEA 2000 network drops and two backbone connections
  • Power and Data LEDs

Link to manufacturers page for full specification and downloads

Write a review

Please login or register to review
  • Brand: Actisense
  • Product Code: Actisense QNB-1-PMW NMEA 2000 Quick Network Block
  • Availability: In Stock
  • RRP Inc VAT: £134.39


  • Our Price: £110.00
  • Ex VAT: £91.67
