Yacht Devices YDEG-04 Volvo Penta EFI 10 Pin Engine Adaptor Cable

Yacht Devices YDEG-04 Volvo Penta EFI 10 Pin Engine Adaptor Cable

Connection to EFI Engines (Gasoline, 2004-2005)

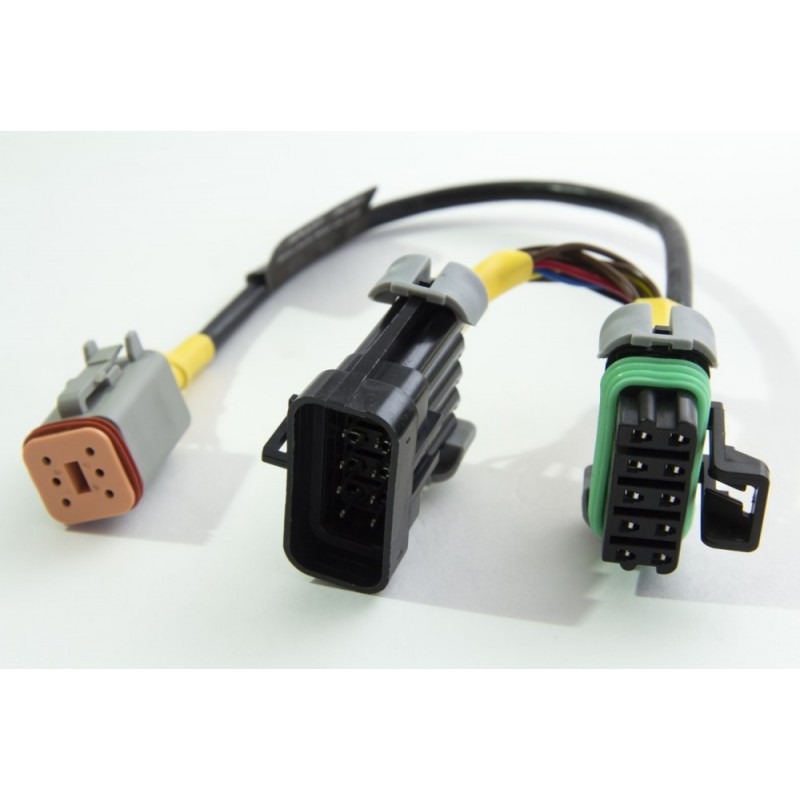

Only engines equipped with an MEFI4B controller and later are supported (for example, 8.1 Gi-E, 8.1 OSi-A, 8.1 Gi-EF, 8.1 GXi-D, 8.1 GXi-E and many other).  The cable has both male and female connectors (Y-connector), so you can use diagnostics equipment with the Gateway connected.

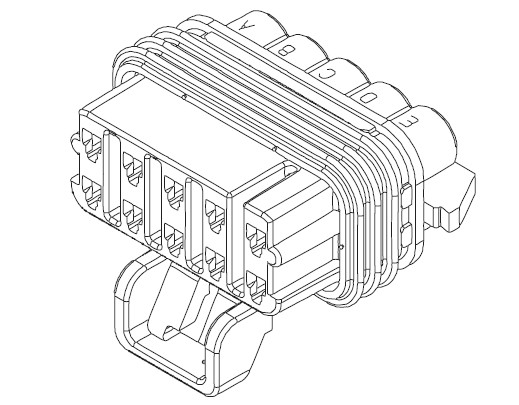

Figure 1. Marine Data Link Connector (with dust cap removed)

Note that ten wires must be connected to the Marine Data Link Connector from the engine side. Otherwise, it means that your engine is equipped with an older MEFI version (MEFI3, MEFI4) which is not compatible with the Device.

To get engine tilt/trim data, please, set MEFI4B setting to ON (see V.36). To calibrate tilt/trim settings, see V.37-39.

Note: you can use the supplied 6-pin plug as a dust cap for the unused Device connector.

Known compatibility for this cable

Volvo Penta 4.3GXi-E Gasoline 2004 MEFI4b

Volvo Penta 4.3GXi-E Gasoline 2005 MEFI4b

Volvo Penta 4.3GXi-EF Gasoline 2004 MEFI4b

Volvo Penta 4.3GXi-EF Gasoline 2005 MEFI4b

Volvo Penta 4.3OSi-E Gasoline 2004 MEFI4b

Volvo Penta 4.3OSi-E Gasoline 2005 MEFI4b

Volvo Penta 4.3OSi-EF Gasoline 2004 MEFI4b

Volvo Penta 4.3OSi-EF Gasoline 2005 MEFI4b

Volvo Penta 5.0GXi-E Gasoline 2004 MEFI4b

Volvo Penta 5.0GXi-E Gasoline 2005 MEFI4b

Volvo Penta 5.0GXi-EF Gasoline 2004 MEFI4b

Volvo Penta 5.0GXi-EF Gasoline 2005 MEFI4b

Volvo Penta 5.0OSi-E Gasoline 2004 MEFI4b

Volvo Penta 5.0OSi-E Gasoline 2005 MEFI4b

Volvo Penta 5.0OSi-EF Gasoline 2004 MEFI4b

Volvo Penta 5.0OSi-EF Gasoline 2005 MEFI4b

Volvo Penta 5.7Gi-E Gasoline 2004 MEFI4b

Volvo Penta 5.7Gi-EF Gasoline 2004 MEFI4b

Volvo Penta 5.7GXi-F Gasoline 2004 MEFI4b

Volvo Penta 5.7GXi-FF Gasoline 2004 MEFI4b

Volvo Penta 5.7OSi-D Gasoline 2004 MEFI4b

Volvo Penta 5.7OSi-DF Gasoline 2004 MEFI4b

Volvo Penta 5.7OSXi-D Gasoline 2005 MEFI4b

Volvo Penta 5.7OSXi-DF Gasoline 2004 MEFI4b

Volvo Penta 8.1Gi-E Gasoline 2004 MEFI4b

Volvo Penta 8.1Gi-EF Gasoline 2004 MEFI4b

Volvo Penta 8.1Gi-F Gasoline 2005 MEFI4b

Volvo Penta 8.1GiI-F Gasoline

Volvo Penta 8.1GXi-D Gasoline 2004 MEFI4b

Volvo Penta 8.1GXi-E Gasoline 2005 MEFI4b

Volvo Penta 8.1GXi-EF Gasoline 2005 MEFI4b

Volvo Penta 8.1OSi-A Gasoline 2004 MEFI4b

Volvo Penta 8.1OSi-B Gasoline 2005 MEFI4b
