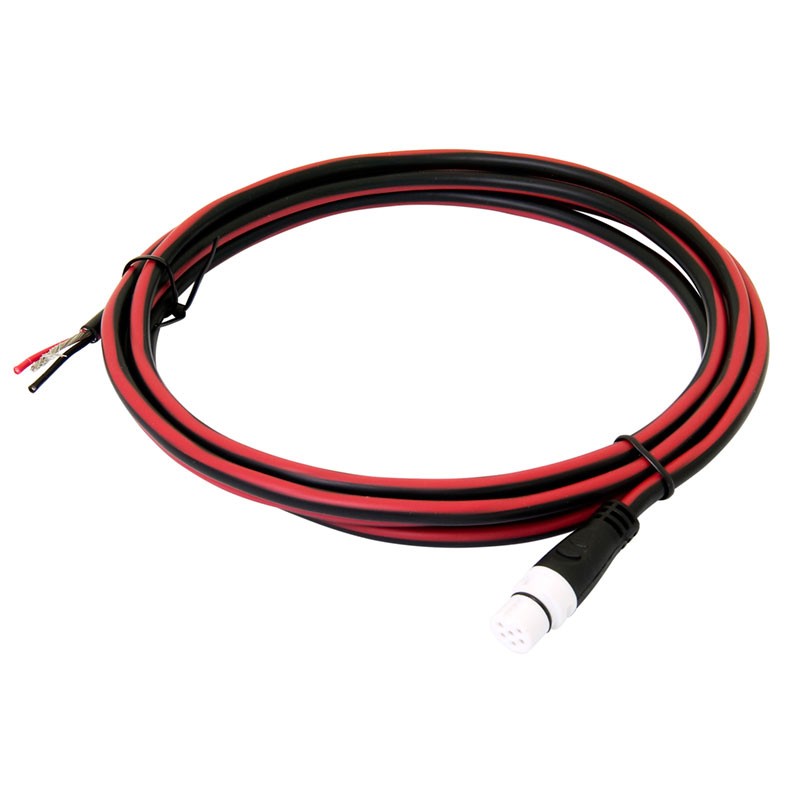

Raymarine SeaTalkNG Power Cable 2m - A06049

Raymarine SeaTalkNG Power Cable 2m - A06049

A cable to connect a SeaTalkNG backbone to a 12v switched power supply. This provides power to the whole network and attached devices.

Only one power cable is used per network. When attached at the mid-point of a network, this cable powers each half of the network independently

Power sources:

A SeaTalkNG system requires one 12 V dc supply, connected to the SeaTalkng backbone. This can be provided:

• By a battery.
• From a Raymarine Course Computer, via SeaTalk and/or SeaTalkng.

Note: If a battery is used as a power source, it is recommended that in order to avoid sudden voltage drops, the battery used for engine starting is NOT used to power SeaTalkng.

On boats with 24 V dc systems, a suitable 24 V to 12 V dc dropper may be used.

The power source must be protected by a 5 A fuse or a circuit breaker providing equivalent protection.
