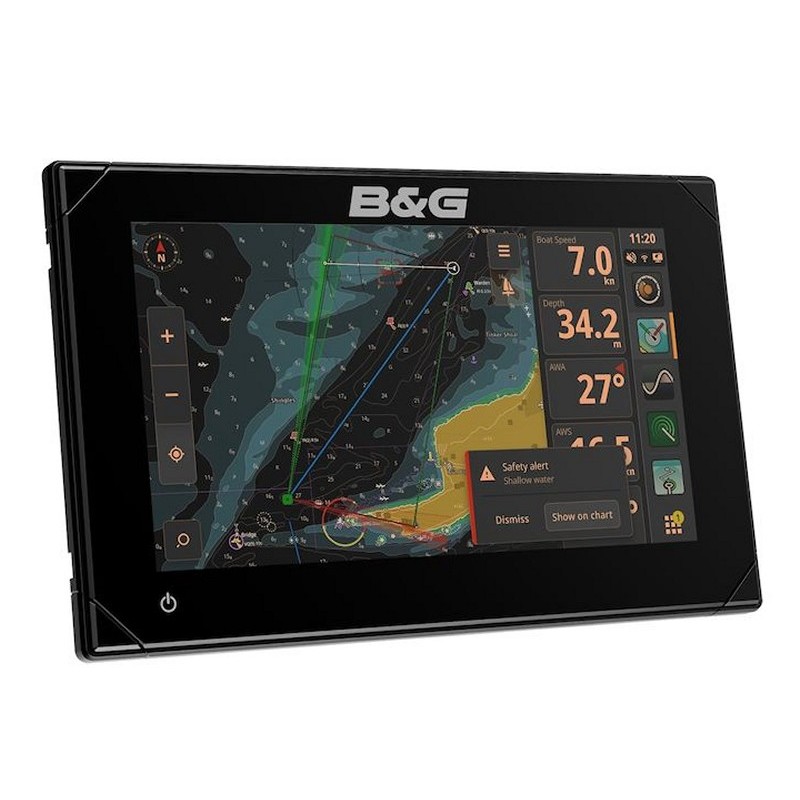

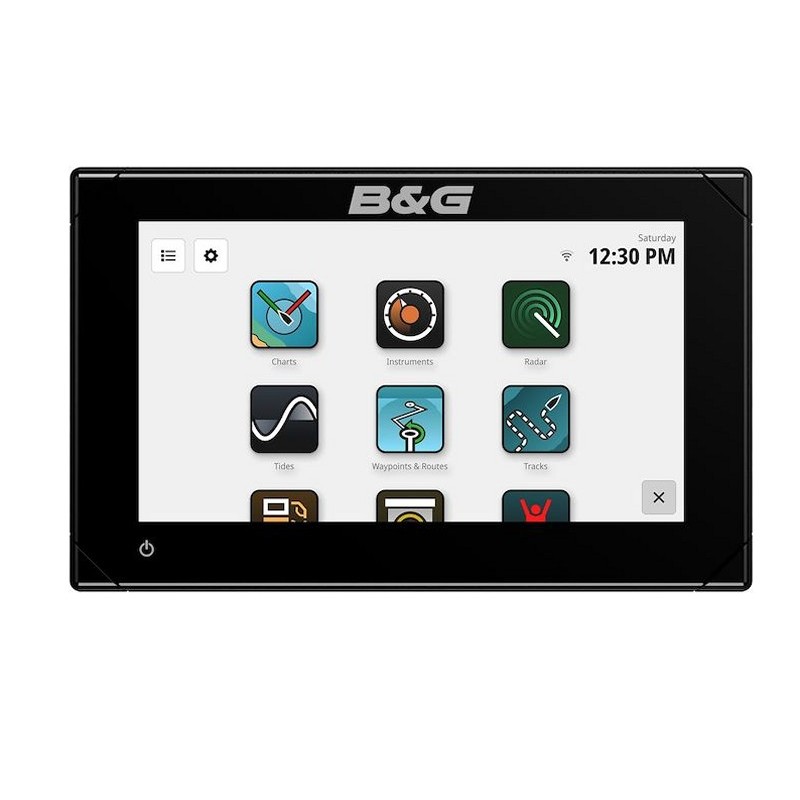

B&G Zeus S 7 Touchscreen Multifunction Display - 000-15217-001

Click Image for Gallery

B&G Zeus S 7 Touchscreen Multifunction Display - 000-15217-001

Zeus® S is the most intuitive and easy-to-use chartplotter for sailing. With unique Sailing Modes providing all the data you need for your situation, detailed charting, and B&G’s new and improved, award-winning sailing features.

Sailing Modes

Improve your sailing with easy-to-interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP powered Safety Alerts guard against grounding and dangerous objects. 

Mapping

C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.

Integration

Zeus S is designed to be the heart of your sailing system. With built-in Wi-Fi®, Ethernet, and NMEA 2000®, it’s easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass. Connecting with the B&G App offers further control and navigation options, both on and off the boat.

Intuitive

Zeus S makes data easy to read, and even easier to digest. The interface is designed to feel familiar – with a new Set-up Wizard to get you started, and helpful feature tips to guide you along the way. Get hassle-free software updates, on- and off-the-water trip planning, and the same clear, accurate chart displays across your Zeus® S, App and Web.

Sailing Modes for Cruising and Racing, providing exactly the data you need for your situation.

NEW C-MAP-powered Safety Alerts feature, to avoid shallow water and dangerous objects on a collision course

Includes B&G’s award-winning sailing features, as well as unique new updates to Laylines, Routes, SailSteer™ and StartLine

C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with intuitive viewing options for easy navigation

High definition SolarMAX™ IPS touch screen, viewable from all angles and in all conditions, even with polarised sunglasses

Full integration with HALO® Radars, Triton™2 Pilots, Triton™2 and Nemesis® instruments, sensors and more

Set-up Wizard to get you up and running quickly

B&G® App integration - access data and charting both on and off the water

Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability

IP Video camera support

Connectivity

Ethernet 1 port (5-pin yellow connector)

NMEA 0183 No

NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity No

Video IP Camera support

WiFi IEEE 802.11b/g/n

Display

Backlight Color White

Resolution 1024 x 600

Screen Brightness 1200 nits

Size and Type 7" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses

Viewing Angles 85° (top, bottom, left, and right)

Electrical

Power Consumption, max. 11.5 W

Recommended Fuse Rating 2A

Supply Voltage 12 V DC (10 - 17 V DC)

Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Environment

Operating Temperature Range -15°C to 55°C (5°F to 131°F)

Shock and Vibration 100,000 cycles of 20 G

Storage Temperature Range -20°C to 60°C (-4°F to 140°F)

Waterproof rating IPx6 and IPx7

GPS

Correction 10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS

GPS Receiver Channels 32 Channels

Position Accuracy Horizontal Accuracy 3 m (9.8 ft)

Update rate 10Hz

MFD

AIS Receive AIS data over NMEA 2000

Cartography supported C-MAP Discover™ X, C-MAP Reveal™ X

External Storage 1 MicroSD slot

GPS Internal, 10Hz, WASS, MSAS, EGNOS

Radar (inc. compatibility) Halo Dome radars, Halo open array radars

Sonar (inc. compatibility) One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging

Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.

Compass Safe Distance - Metric, imperial 50 cm (1.7 ft)

Physical

Dimensions (W x H x D) 195 x 123 x 72mm (7.7 x 4.8 x 2.8")

Mounting Type Bracket (supplied), panel mount or flush mount

Weight 0.8 kg (1.7 lbs)

Other

Warranty Period 2 Years

Interface Multi-touch screen

Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish

Brand: B and G
Product Code: B&G Zeus S 7 Touchscreen MFD - 000-15217-001
Availability: In Stock
