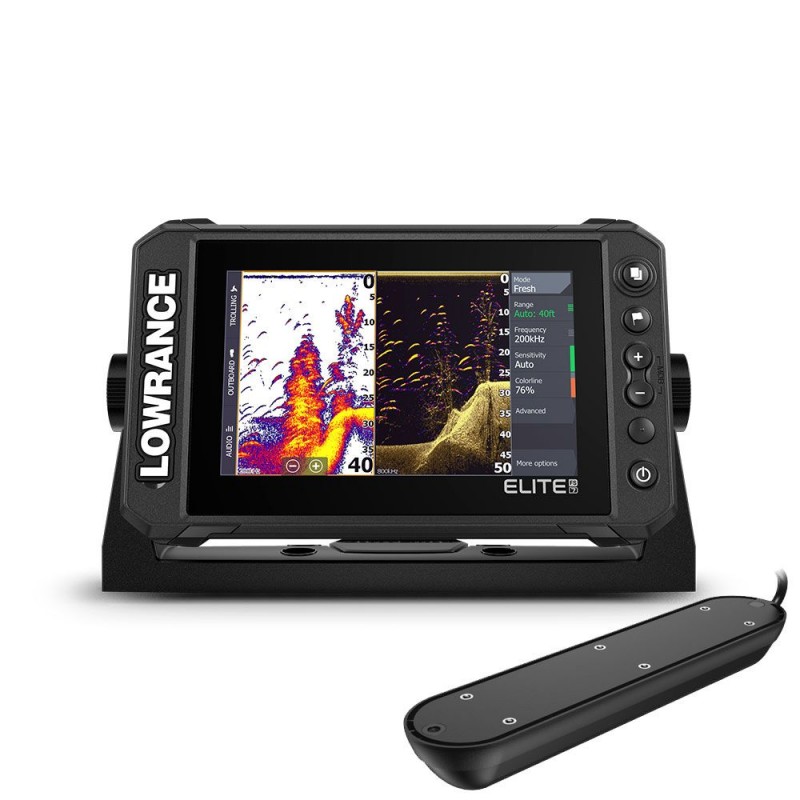

Lowrance Elite FS 7 with Active Imaging 3-in-1 Transducer - 000-15689-001

Lowrance Elite FS 7 with Active Imaging 3-in-1 Transducer - 000-15689-001

Lowrance Elite FS 7 with Active Imaging 3-in-1 Transducer - 000-15689-001


The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From integrated support for ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to compatibility with a wide range of chart options, Elite FS gives you all the tools you need to find and catch more fish.

Find More Fish with Proven Lowrance Sonar

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Target Fish Live with New ActiveTarget™ Live Sonar

Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Multitude of Chart Options

Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics® and more.

Features:

  • Includes Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan Imaging™
  • ActiveTarget™ Live Sonar ready
  • Active Imaging 3-in-1 ready
  • FishReveal™
  • Includes worldwide basemap, plus a wide range of chart options, including C-MAP, Navionics® and more
  • C-MAP® Easy Routing, Navionics® Autorouting capability
  • C-MAP Genesis Live onscreen mapping
  • High-resolution multi-touch touchscreen
  • Integrated wireless, NMEA 2000® and Ethernet connectivity
  • Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
NMEA 20001x Micro-C
PC ConnectivityNone
VideoNone
WiFiInternal 802.11b/g/n

Display

Backlight ColorPure White LED
Resolution800x480
Screen Brightness>1200 nits
Size and Type7.00" (178mm) WVGA color TFT LCD
Viewing Angles50° top60°bottom70° left/right

Electrical

Power Consumption, max.2.0A @ 13VDC with backlight on full
Power Consumption, min.2.0A @ 13VDC with backlight on full
Power Consumption, typical2.0A @ 13VDC with backlight on full
Recommended Fuse Rating3A
Supply Voltage12v DC (10.8-17VDC)
Humidity60°C, 95% relative humidity (RH) for 18 hours

Environment

Operating Temperature Range5°F to 131°F (-15°C to 55°C )
Shock and Vibration100,000 cycles of 20 G
Storage Temperature Range4°F to 140°F (-20°C to 60°C )
Waterproof ratingIPX7 with card door closed

GPS

CorrectionDGPSWAASMSASEGNOSGLONASS
GPS Receiver Channels16
Position Accuracy20m RMS
Time to First Fix30s
Update rate10 Hz

MFD

AISAIS Chart overlay. Target vessel details.
AutopilotOutboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography includedC-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
Cartography supportedC-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital SwitchingNone
External Storage1 micro SD card up to 32GB
GPS10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal StorageNone
MultimediaSonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility)4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Sonar (inc. compatibility)Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
WeatherSiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance - Metric, imperial12" (300mm)

Physical

Mounting TypeGimbal Bracket or Dash Flush Mount
Weight1.90 lbs (0.90 kg)

SUNCOVER: ELITE-7 FS

HDS-7 LIVE BRACKET

CABLE,POWER ONLY HDS/ELITE/HOOK

HDS FUSE & FUSE HOLDER

ACTIVEIMAGING 3-IN-1 TRANSDUCER
